SPECIFICATIONS

Brand Name: NONE

Choice: yes

Electric: No

High-concerned chemical: none

Model Number: PWM Speed Regulator

Origin: Mainland China

Type: Fan Parts

Features:
1: Small size
2: Simple to use
3: The duty cycle is adjustable from 0% to 97%, and the speed regulation range is wide.
4: PWM frequency is 25KHZ
5: Easy to install

Overview:

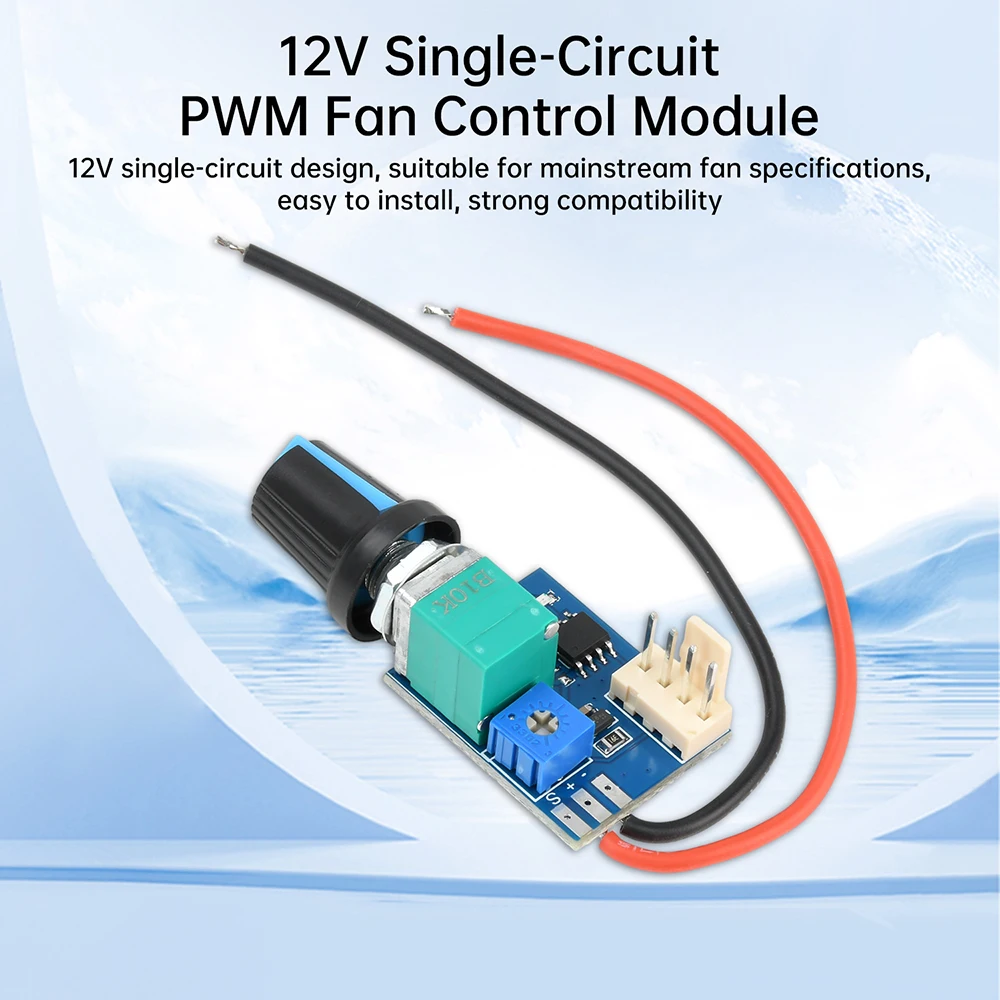

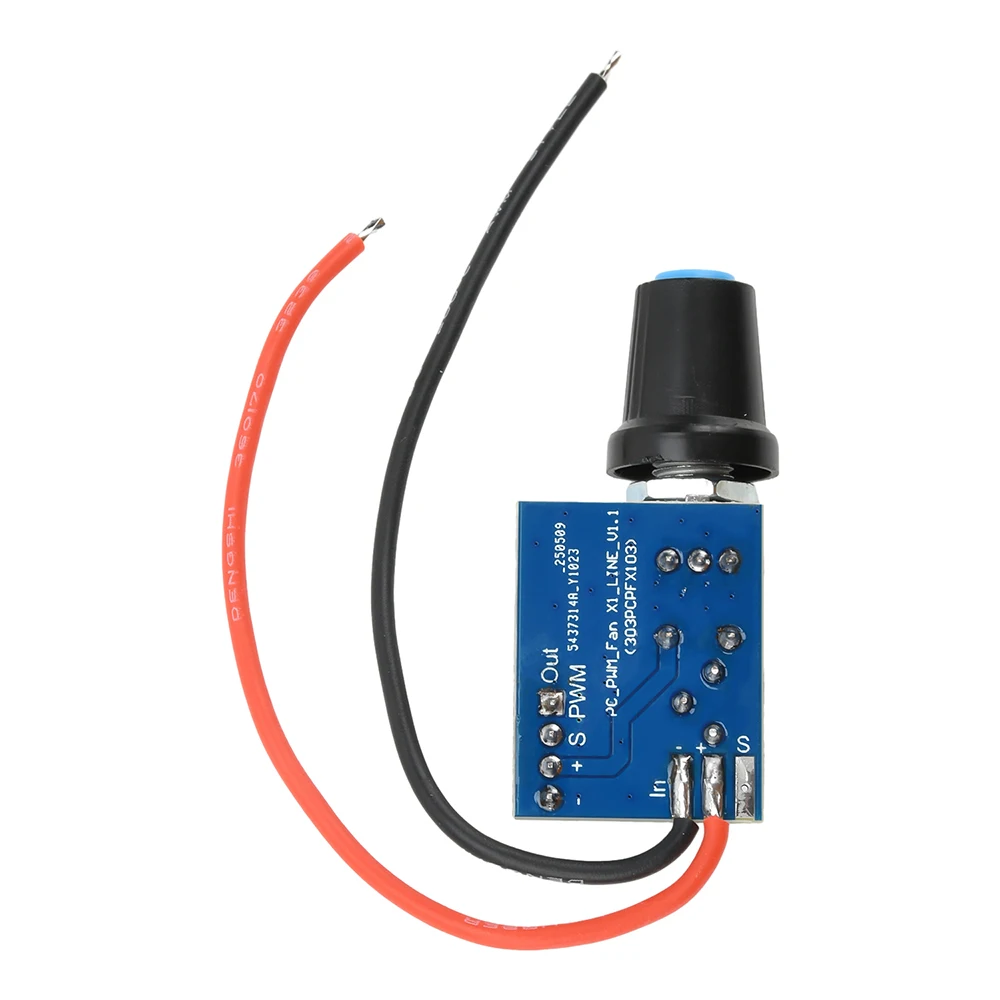

The single-channel PWM fan control board adopts the PWM speed regulation scheme, which can better adapt to the 4-wire speed regulation fans on the market.
By rotating the potentiometer, the fan speed can be easily adjusted.
1. The PWM frequency is 25KHZ, which can adapt to most 12V adjustable speed fans on the market.
2. The duty cycle can be adjusted from 0% to 97%, and the speed regulation range is wide.
3. Rotary potentiometer with switch, easy to start and stop.
4. Input voltage: 12V
5. Small size, easy to install

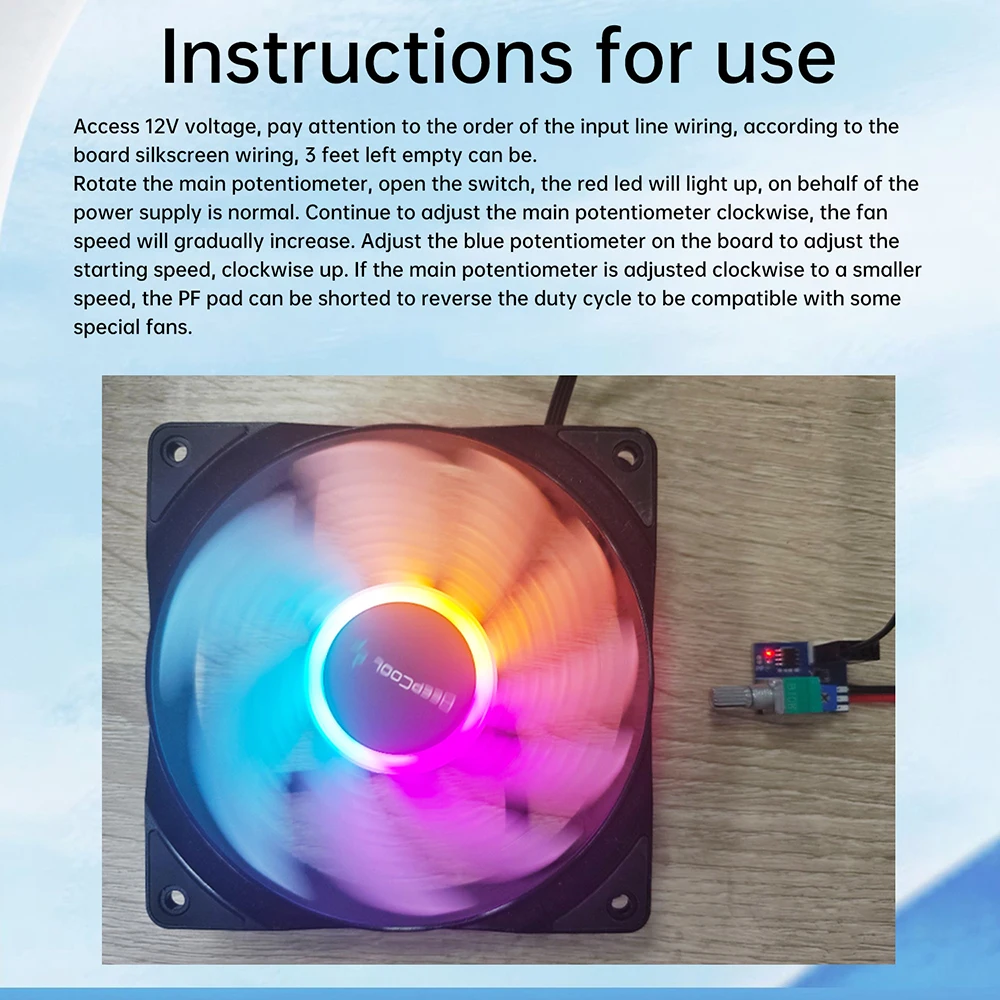

Instructions:

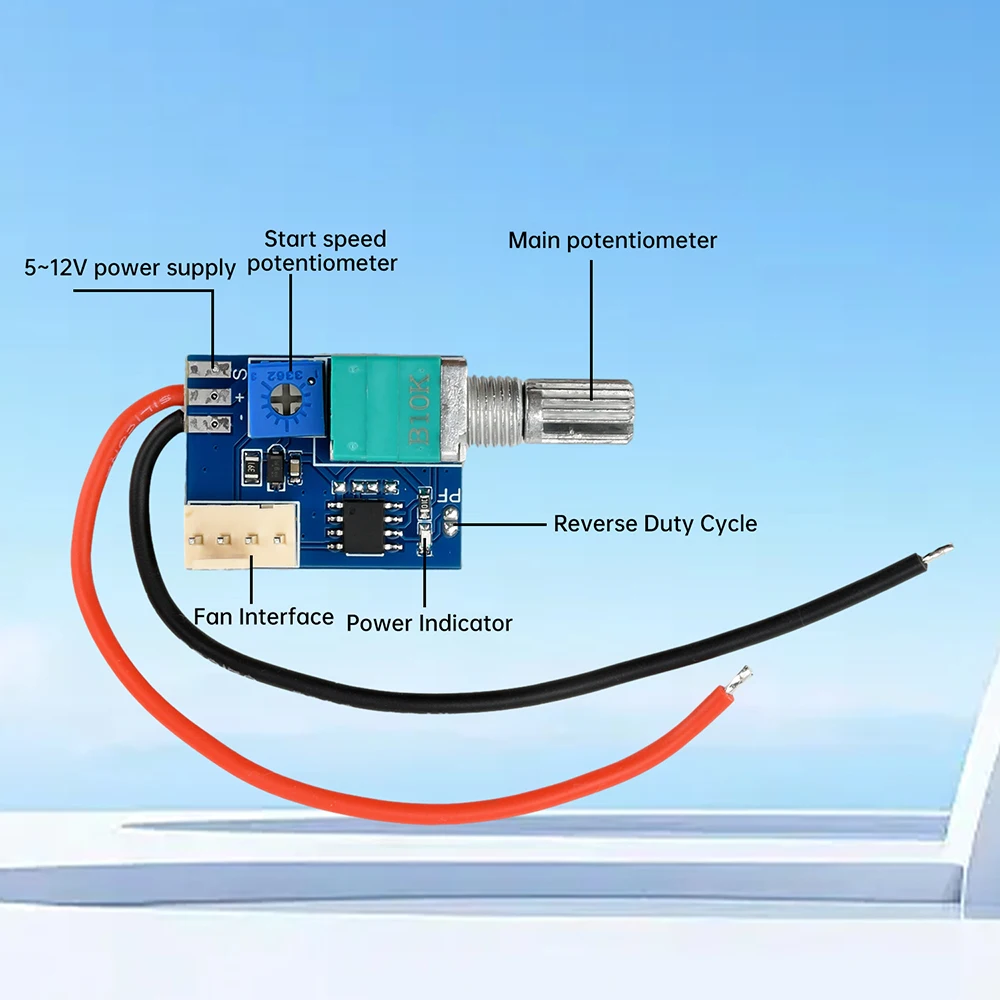

Need to solder the wire by yourself, connect to 12V voltage, pay attention to the wiring sequence from top to bottom, 1 pin is grounded, 2 pin is connected to 12V, and 3 pin is left blank.
Rotate the potentiometer, turn on the switch, the red led will light up, which means the power supply is normal. Continue to adjust the potentiometer clockwise, and the fan speed will gradually increase.

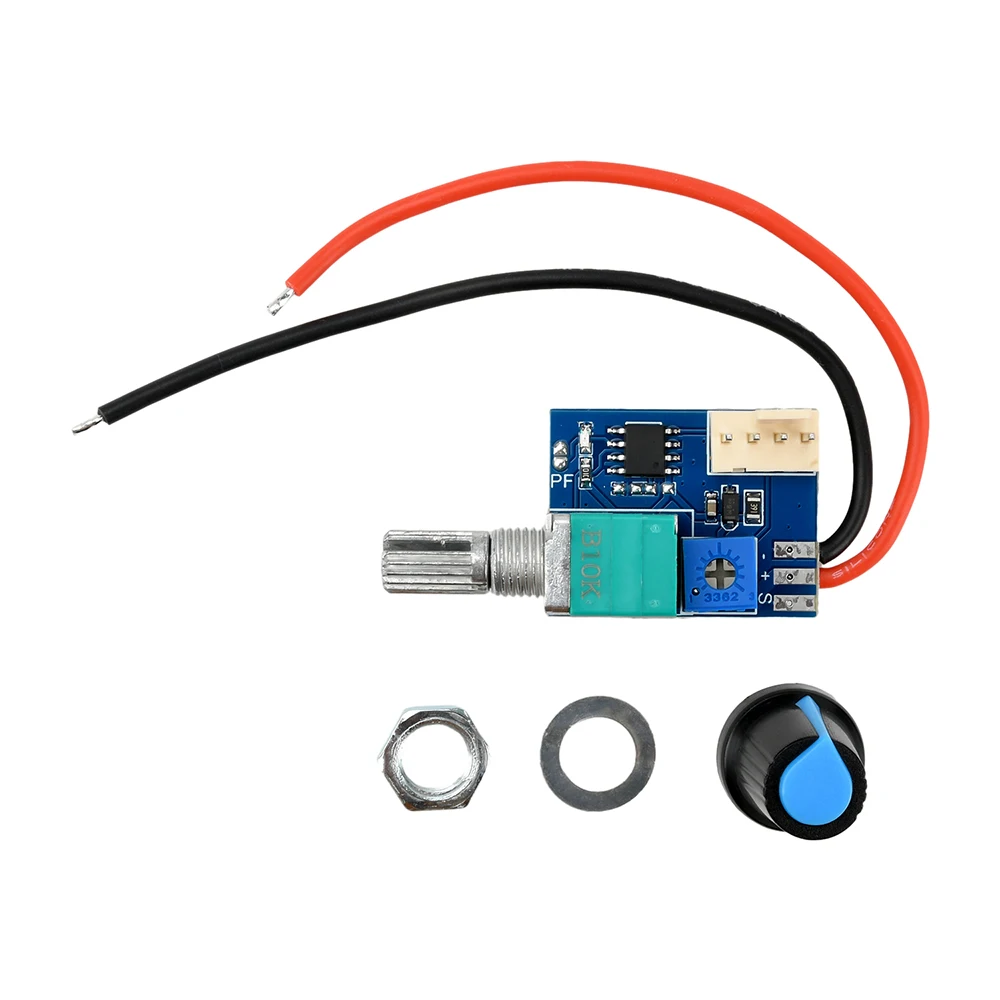

Package includes:
1*PWM speed controller
