Weighing pressure sensor belt

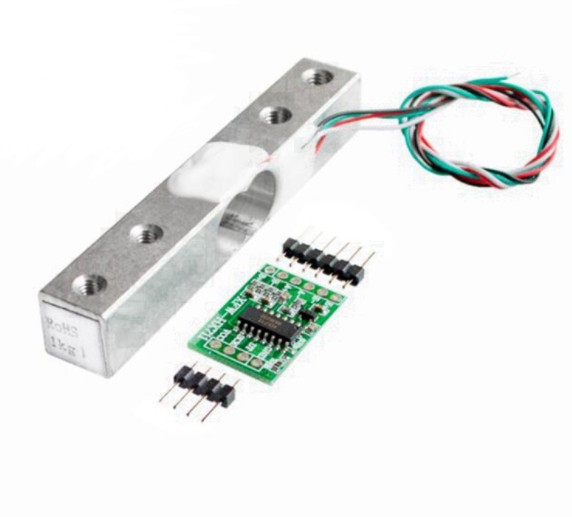

1kg, 5kg, 10kg small range weighing pressure sensor with HX711AD module weighing module

  One end of the sensor is fixed by a screw hole, and the other end is kept in the air, and gravity is applied in the direction indicated by the label. Special attention should be paid to not directly pressing the white coated part to avoid damage to the sensor.

Wiring mode: red: power +, black: power -, green: output signal +, white: output signal-
