YF-S201 Water Flow Sensor Hall Effect Flow Meter For Water Dispensers

Product information:
Specifications: YF-S201 Black, YF-S201 White
1. Rated operating voltage
DC 4.5 V–24 V
2. Maximum operating current
15 mA (at DC 5 V)
3. Operating voltage range
DC 5–18 V
4. Load capacity
≤10 mA (at DC 5 V)
5. Operating temperature range
≤80°C
6. Operating humidity range
35%–90% RH (no frost formation)
7. Permissible pressure resistance
Water pressure up to 1.75 MPa
8. Storage temperature
-25–+80°C
9. Storage humidity
25%–95% RH
Usage precautions:
• Avoid severe impacts and exposure to chemical substances.
• Do not throw or subject the device to physical impact.
• The medium temperature should not exceed 120°C.

Packing list:

1*Water flow sensor

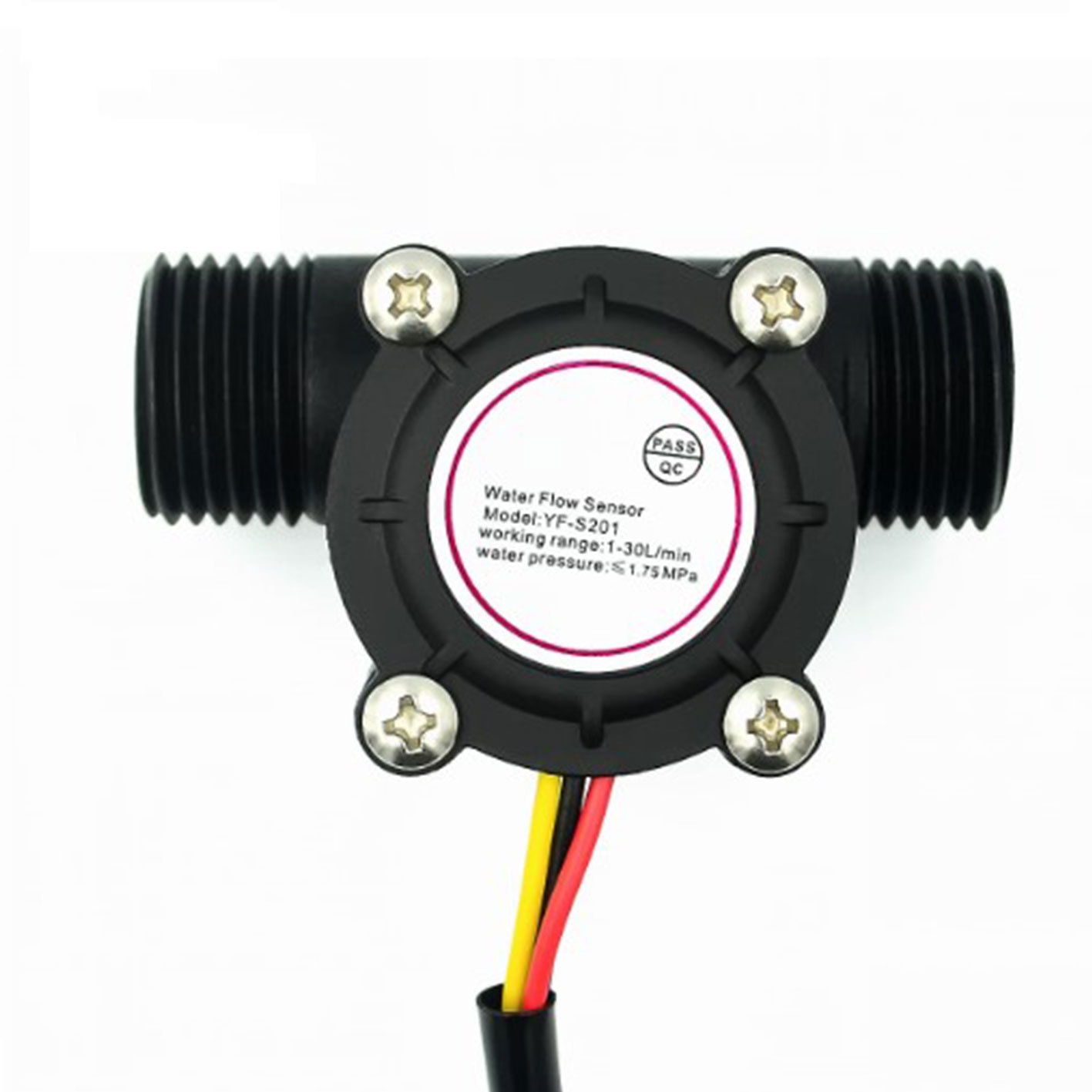

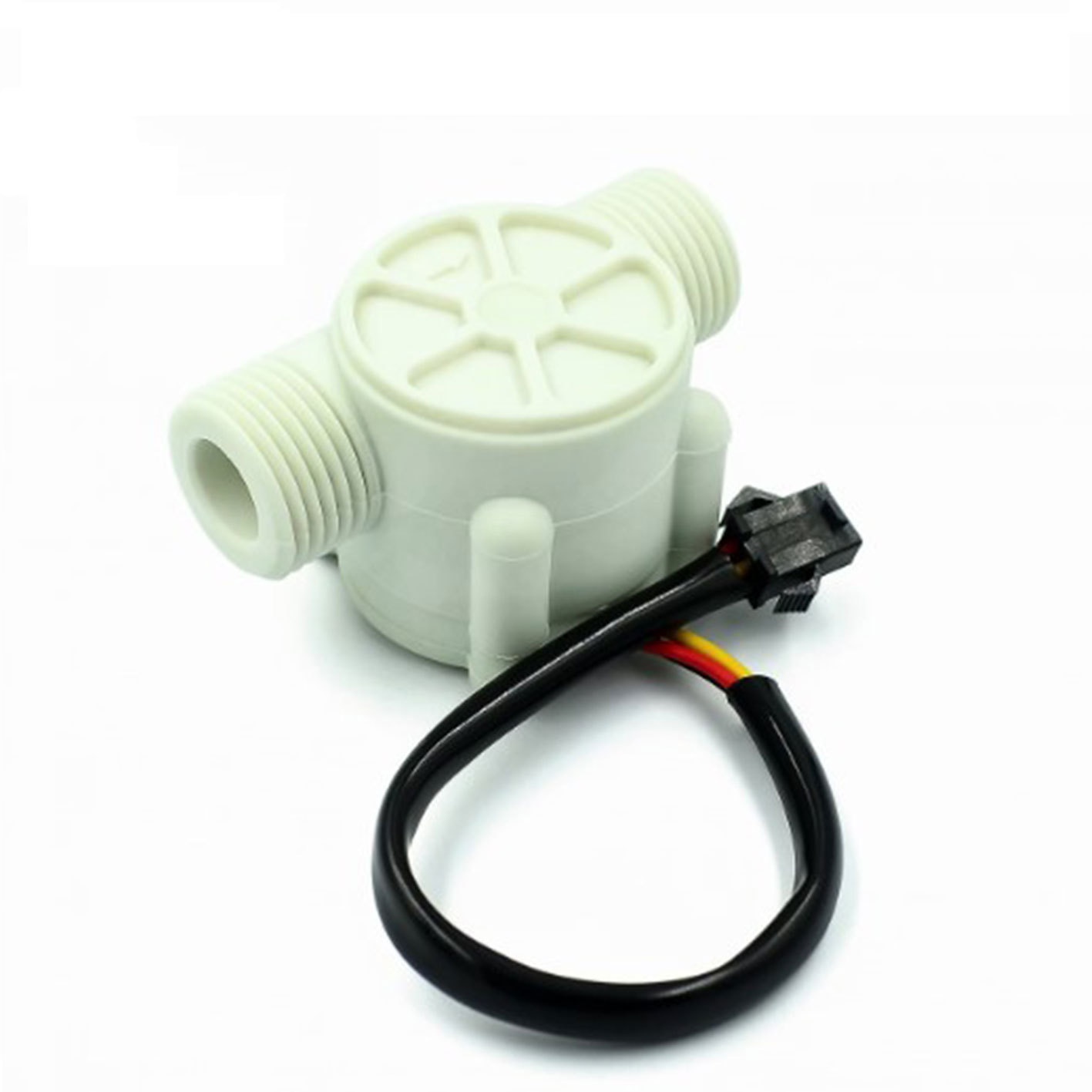

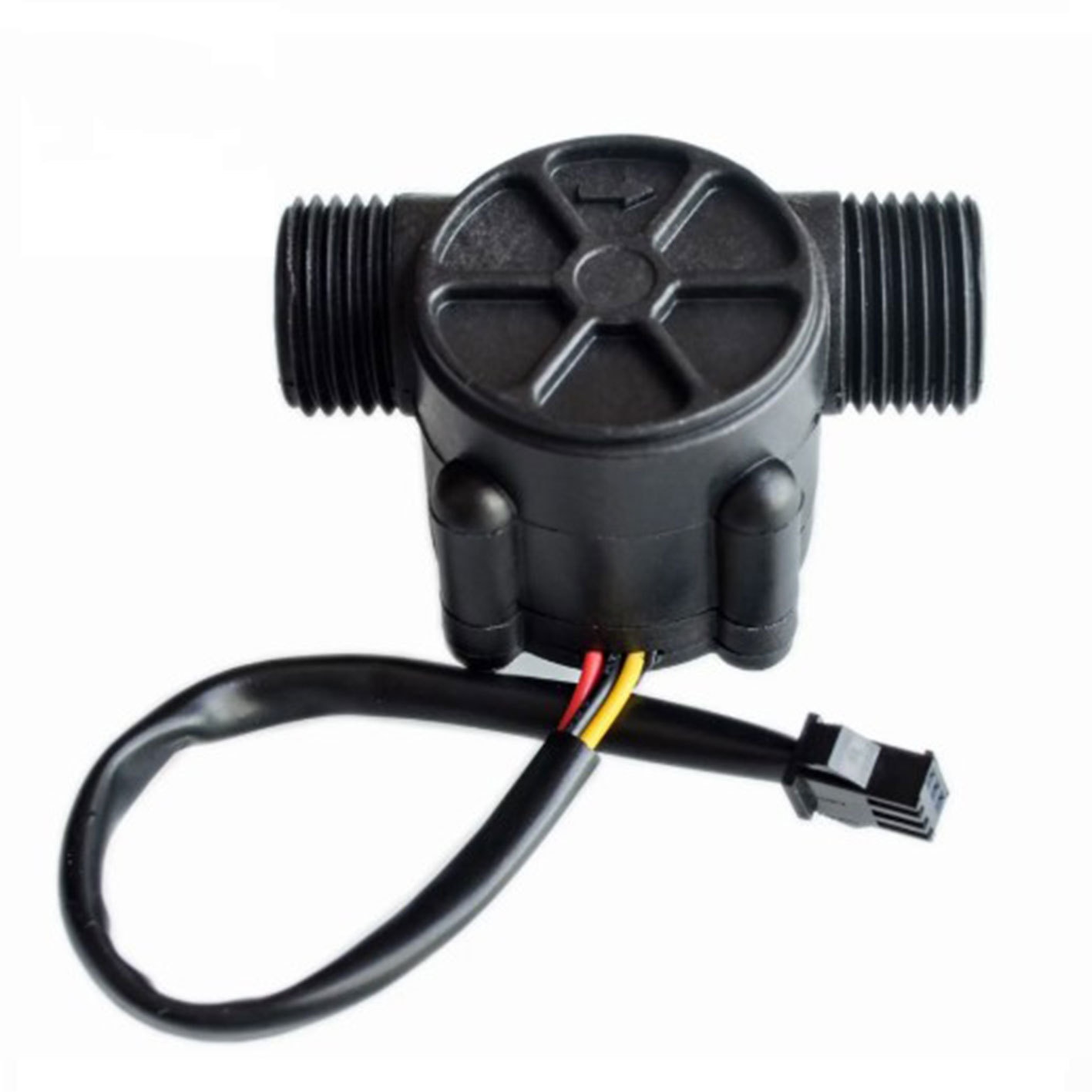

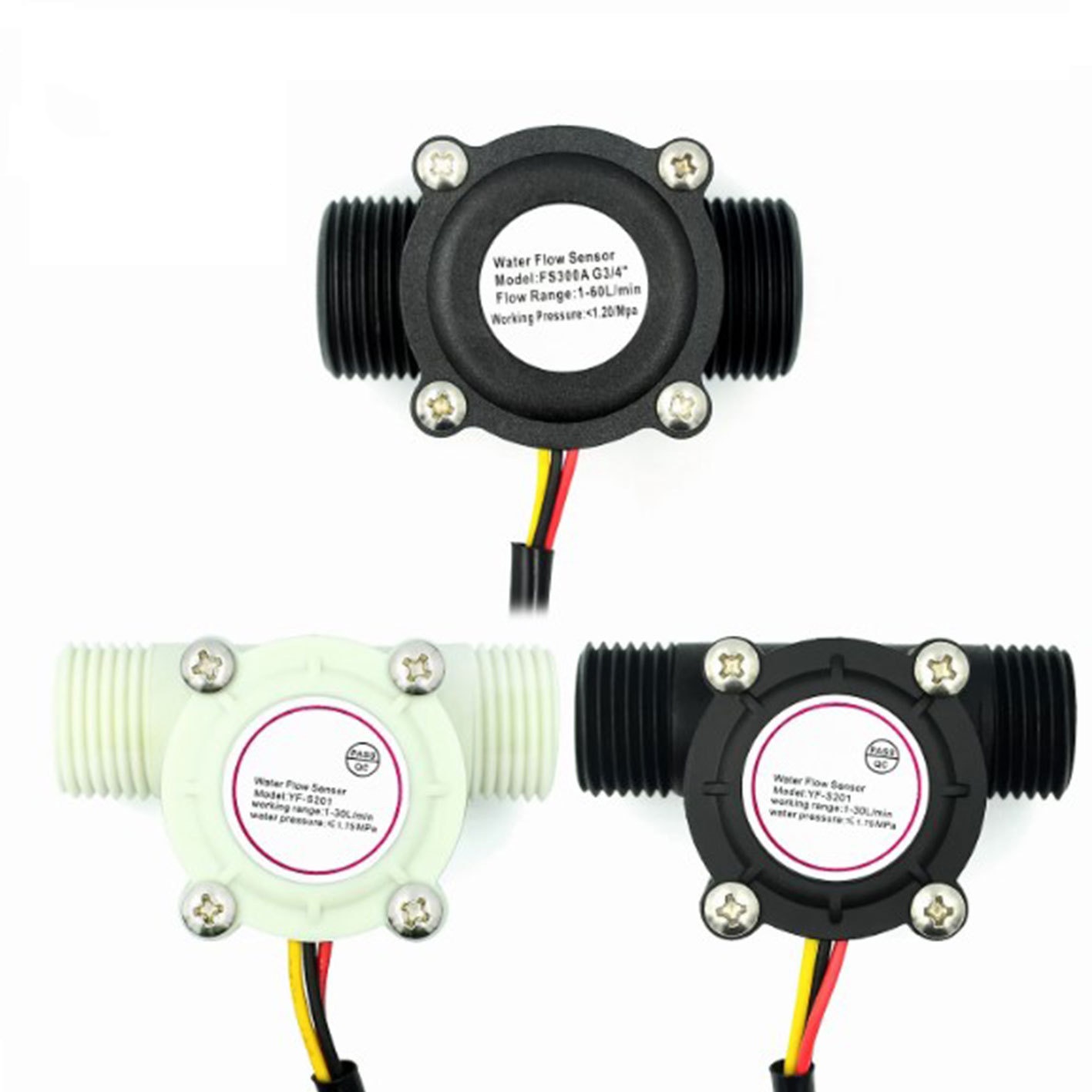

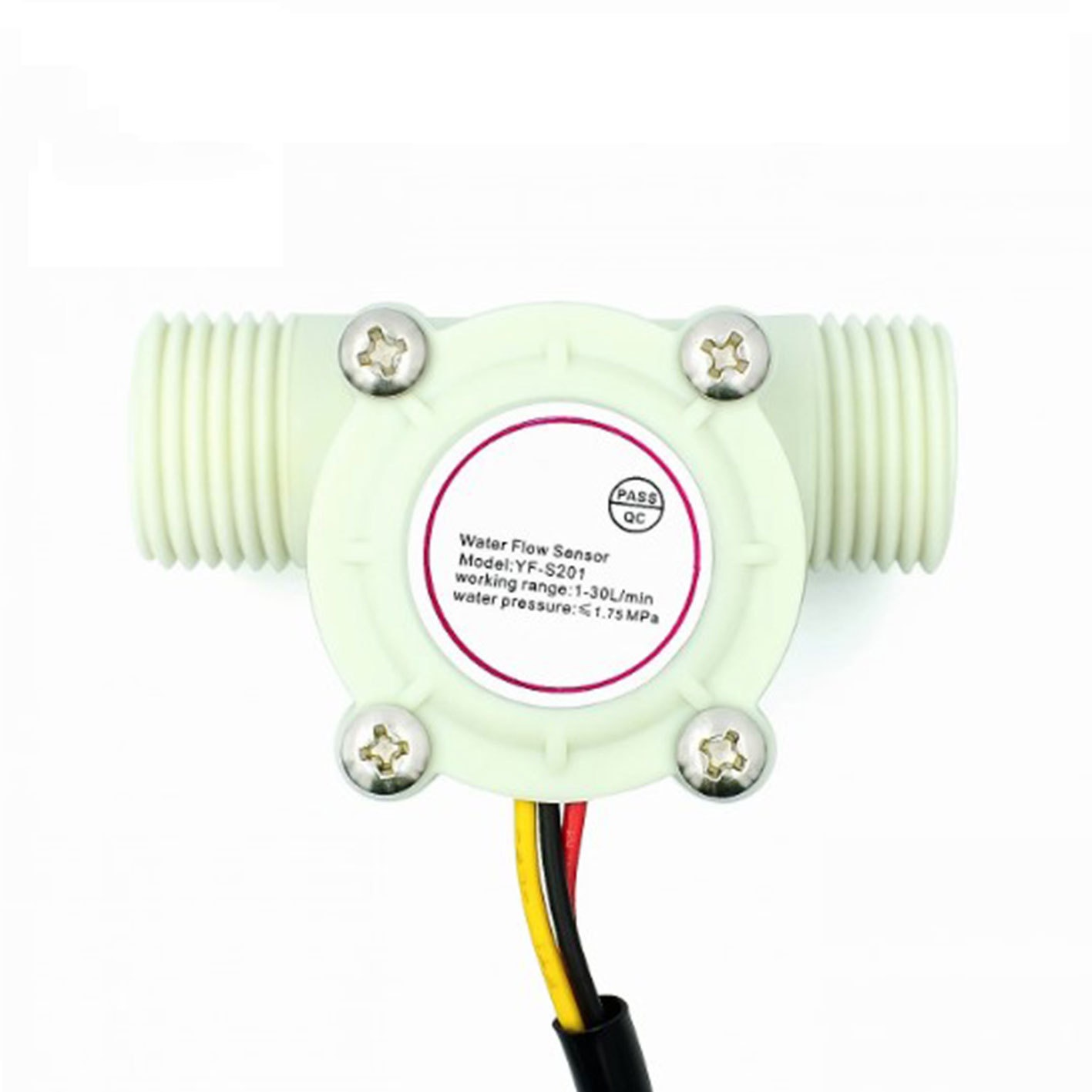

Product Image:
