Home Fashion Simple Corrected Wave Inverter

Product information:

Product size: 360*160*105mm
Item number: CS1500UPS LCD
Input voltage: DC12V/24V
Output voltage: AC110V/120V/220V/230V/240V
Output power: 1500W
Peak power: 3000W
Output frequency: 50Hz/60Hz
High voltage cut off: DC15V/30V±2
Low voltage alarm: DC12.5V/DC21V±0.5
Low voltage cut off: DC10V/DC20.3V±5V
Input working voltage range: DC10V-15V/DC20V-DC30V
Cooling: Fan cooling
The maximum working temperature of the shell: <75℃

Scope of application: office equipment laptops, mobile phones, printers, monitors
Household appliances: TVs, VCRs, stereos, DVDs, VCDs and refrigerators
Suburban travel: outdoor lighting, microwave ovens, cooking, etc.
Outdoor work: power tools, vehicle assistance, emergency rescue, commercial promotion, etc.
Leisure and entertainment: mobile phone, PDA, digital video camera, digital camera, battery charging and GPS satellite navigation, etc.

Features:
1. Set the switch to the OFF position, and then clamp the battery clip to the battery to keep it firmly.
2. Make sure that the power of all electrical appliances is below the nominal power, and insert the 220V plug of the electrical appliance directly into the 220V socket at one end of the converter.
And make sure that the sum of the power of the appliances connected to the two sockets is within the nominal power.
3. Turn on the switch of the converter, the green indicator light is on, which means it is working normally.
4. The red indicator light is on, indicating that the converter is turned off due to overvoltage/undervoltage/overload/overtemperature.
5. In many cases, due to the limited output of the car cigarette lighter socket, the converter alarms or shuts down during normal use. At this time, it can return to normal as long as the vehicle is started or the power consumption is reduced.

Packing list:

Inverter*1
Battery clip/terminal wire*1
Charging cable*1
Instruction Manual*1

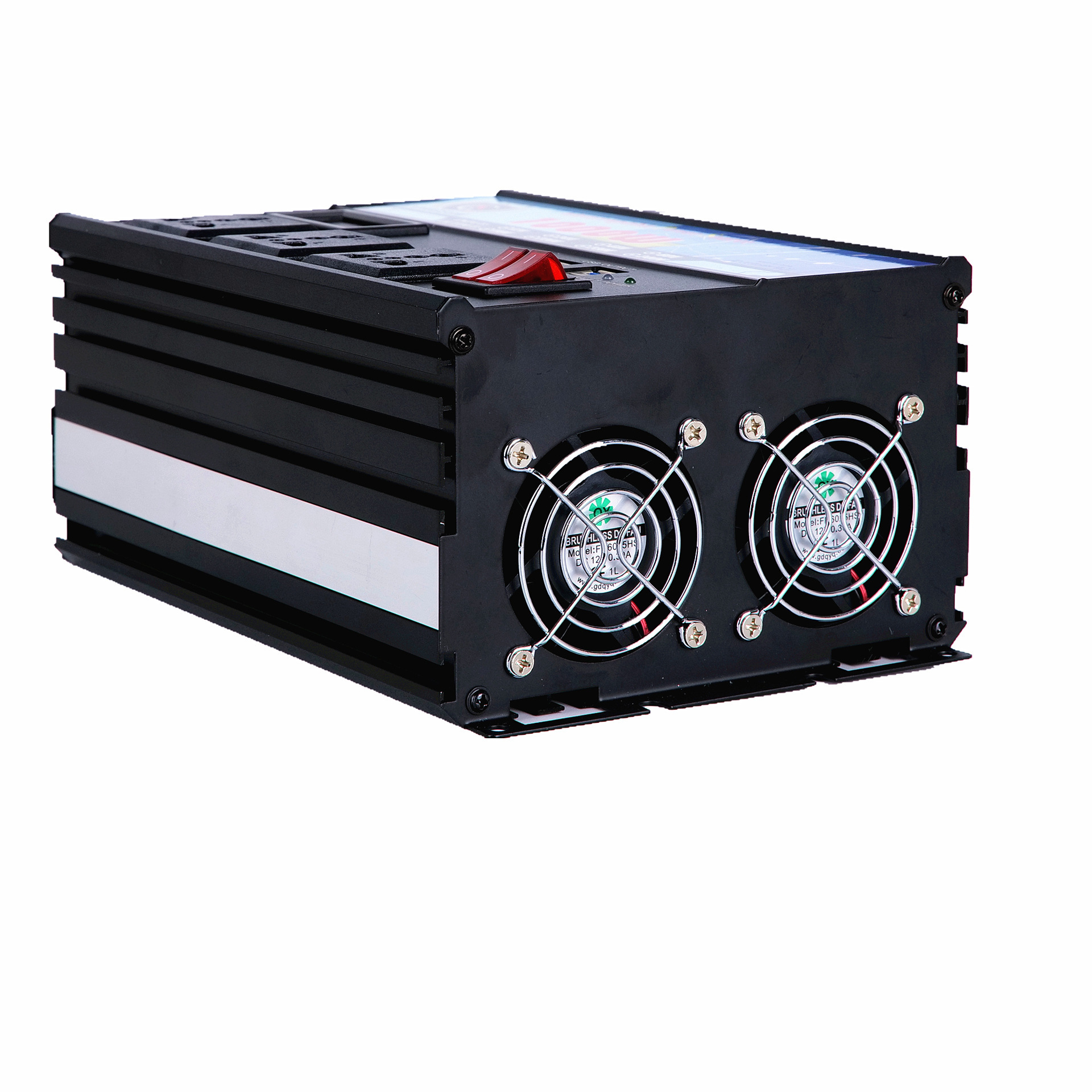

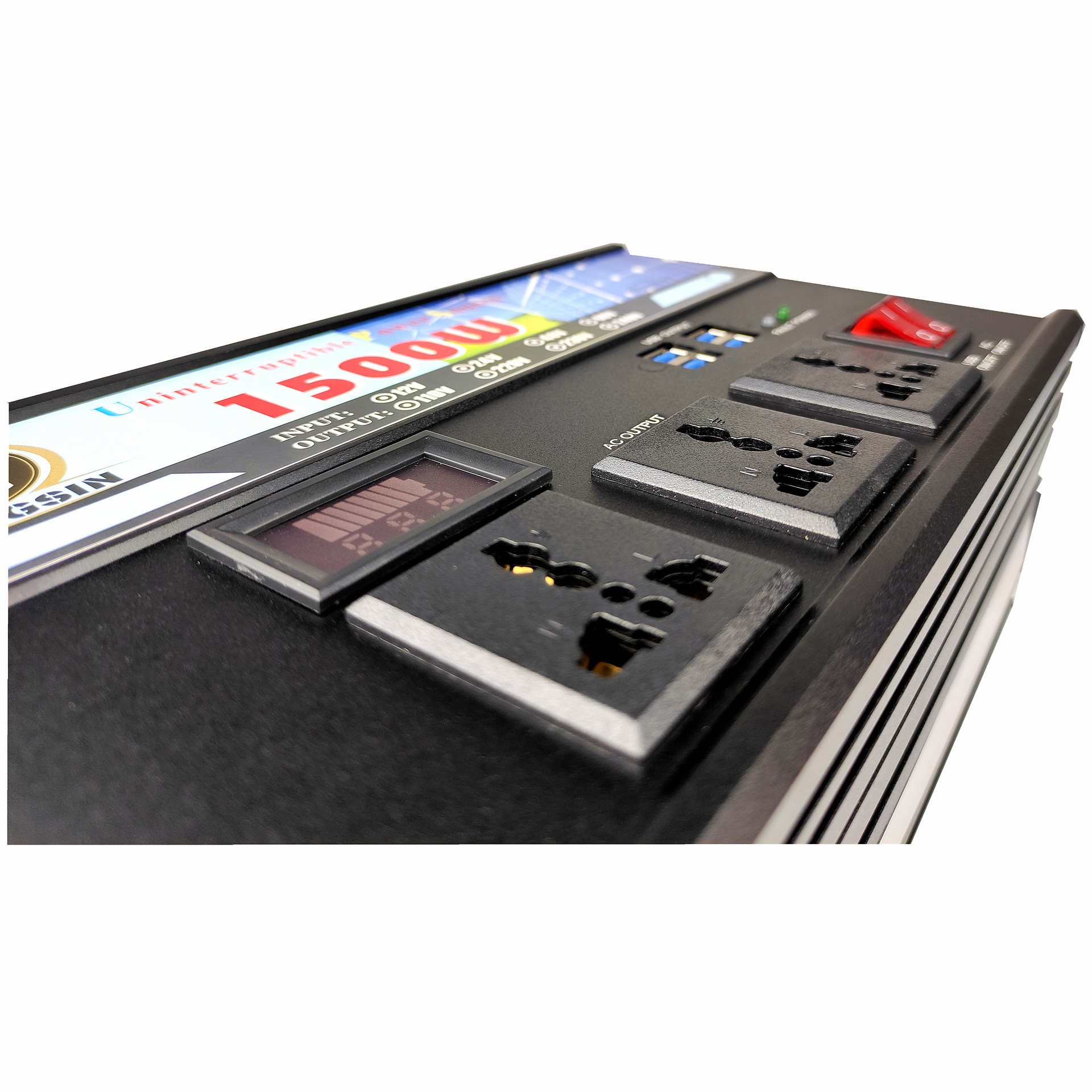

Product Image:
