Features:

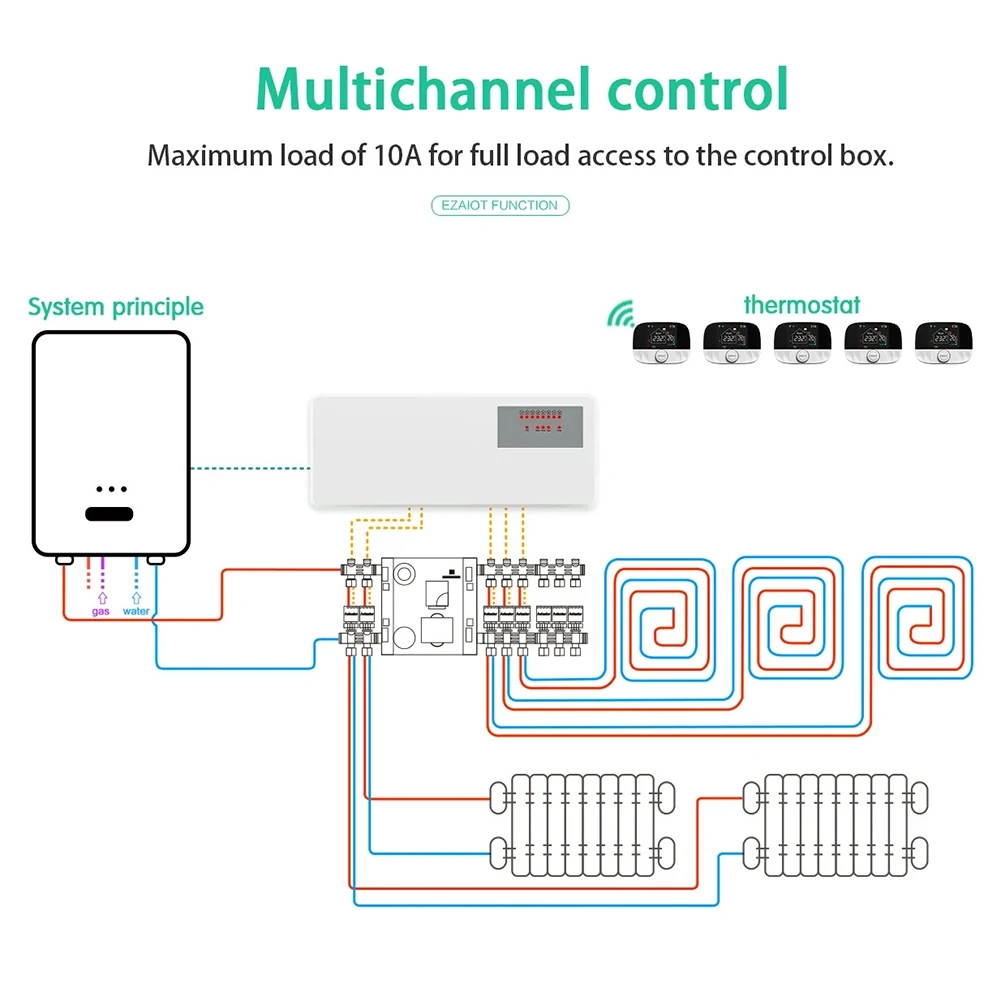

The centralized control box system controls the on/off of wall-mounted boilers, circulating water pumps, or electric heating actuators according to user-set temperature requirements to achieve comfortable temperature control and reduce energy consumption.

Each master controller can control up to 8 slave controllers.

The system includes electric heating actuators, boilers, water pumps, and various mixing .

Each output has a corresponding indicator light, which is simple, clear, and easy to troubleshoot.

Specifications:

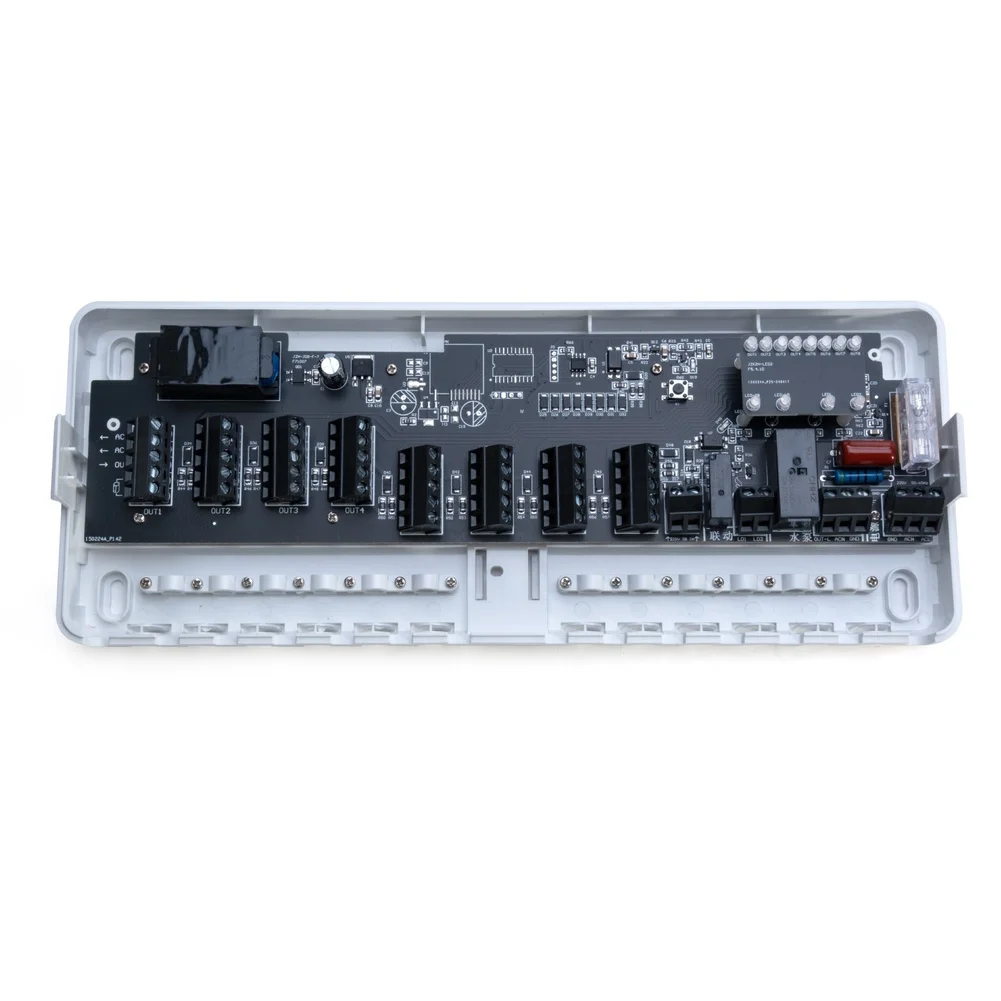

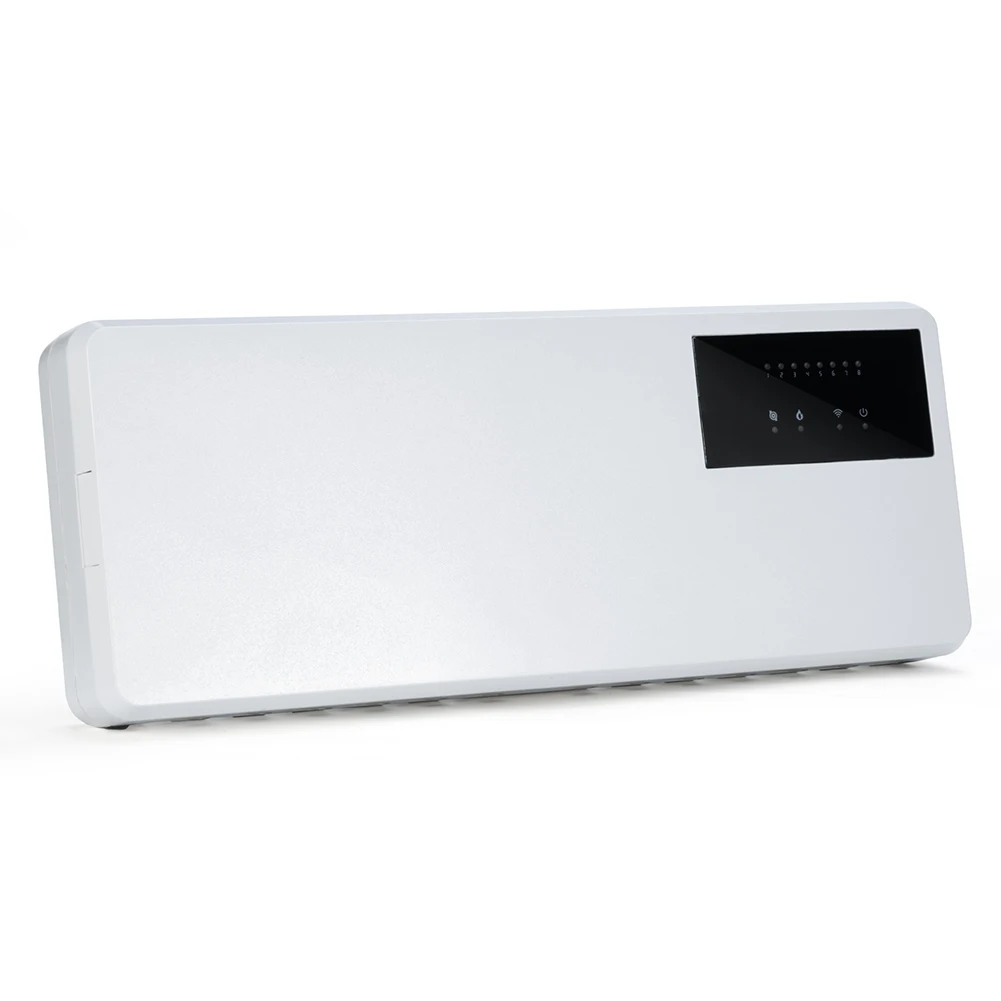

Part Name: GA-106 8-Channel Heating Controller

Material: ABS

size: 280X110X40mm, 200×68×32mm

Color: White

Power Supply: 160-240VAC 50/60Hz

Maximum Output Current: 16A

Operating Ambient Temperature: -20°C to 60°C

Storage Temperature: 20°C-70°C

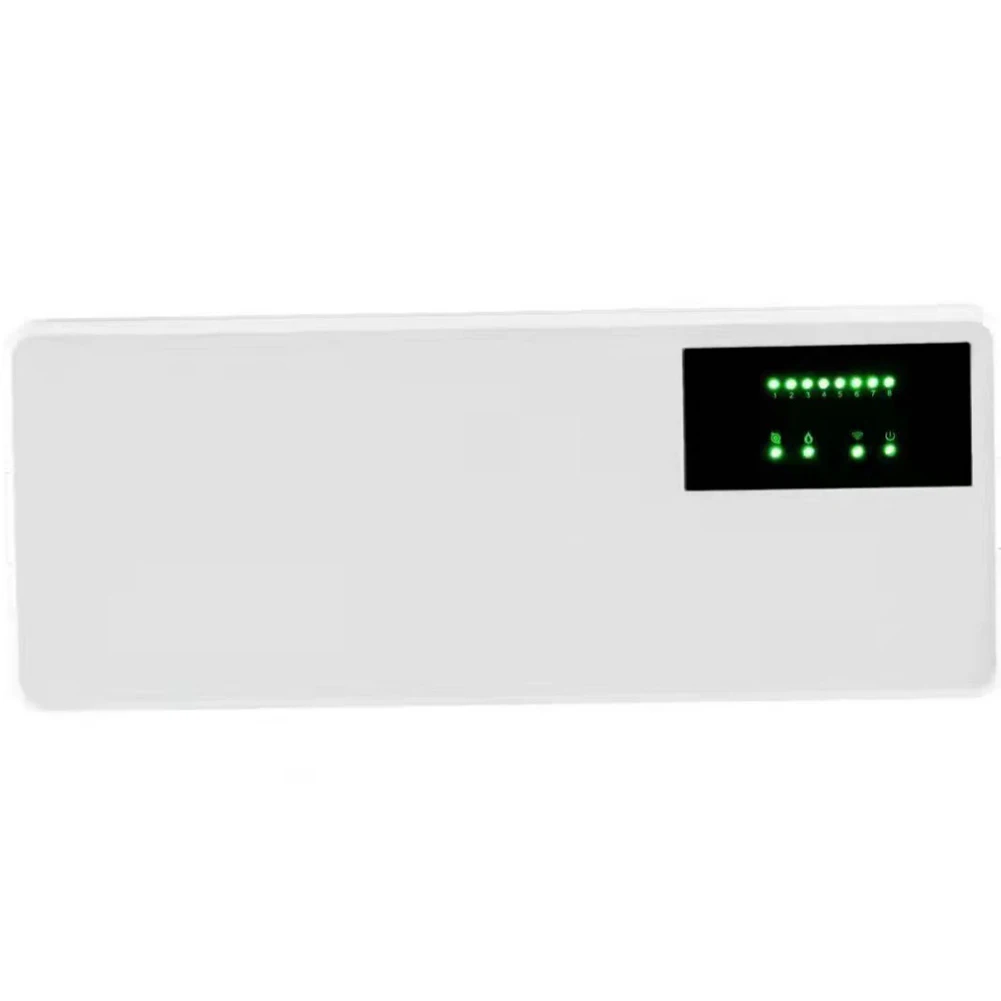

Output Indicators:

1. Remarks

a) OUT1-OUT8: Thermostat output ports

b) L: live terminal N: Neutral wire

C): OUT: Thermostat output wire

d): R1-R8: Electric heating actuator output port

e): pump terminal: Circulating water pump output port 250VAC, 16A

f): G1: Passive output (boiler ≤5A)

g): ±: Grounding

h): AC: Power input 160-240VAC, 50/60Hz

Package contents:

1*GA-106 basic controller (280X110X40mm)

Note:

Before installing, disassembling, cleaning, or repairing the thermostat, always disconnect the main power supply and unscrew the fuse or for ensure the circuit breaker is in the OFF position. The instruction manual must be read carefully before installing the thermostat, and the thermostat must be operated strictly according to the instructions. Only engineering companies with the appropriate safety knowledge should install thermostat. All wiring must comply with local and for local standards.

Use strictly according to this instruction manual.
