Digital Display Level Goniometer Horizontal Ruler

Product information:
Product characteristics
1. LTD backlight
2. The backward display function
3. Horizontal alignment
4.REE relative measurement
5.HOLD displays a lock
6. Automatic shutdown
7. Switch between three modes of slope
8. 0°/90° Prompt tone (B, C)
9. Fall protection
10. Electromagnetic protection level 3
11. Battery 2 x AAA
Application field
1, mechanical manufacturing: machine table level and inclination position adjustment;
2, construction engineering: road and bridge slope detection;
3, communication installation: base station, satellite, TV receiving equipment elevation measurement;
4, home decoration: plane, equipment level measurement, installation level measurement;
5, others: railway, water conservancy, biology, medicine, industrial automation and other areas that need level measurement.

Model: HW-200
Battery type: 2*AAA No. 7 battery (shipped without battery)
Packing: white box packing
Measuring range: 4×90°
Accuracy: ±0.1°
Resolution: 0.05°
Product size :286MM*59MM*20MM

Packing list:

HW-200*1 Specification *1

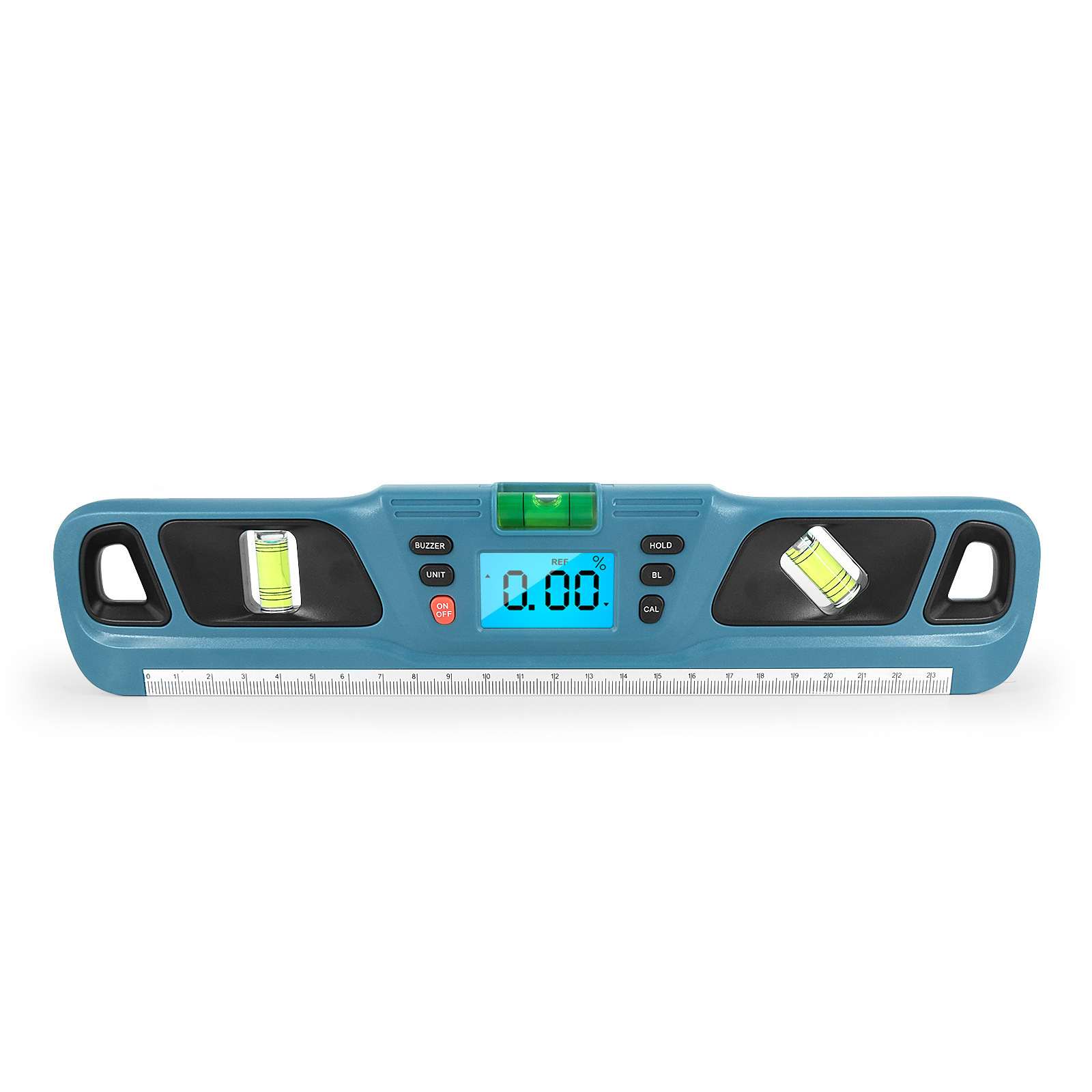

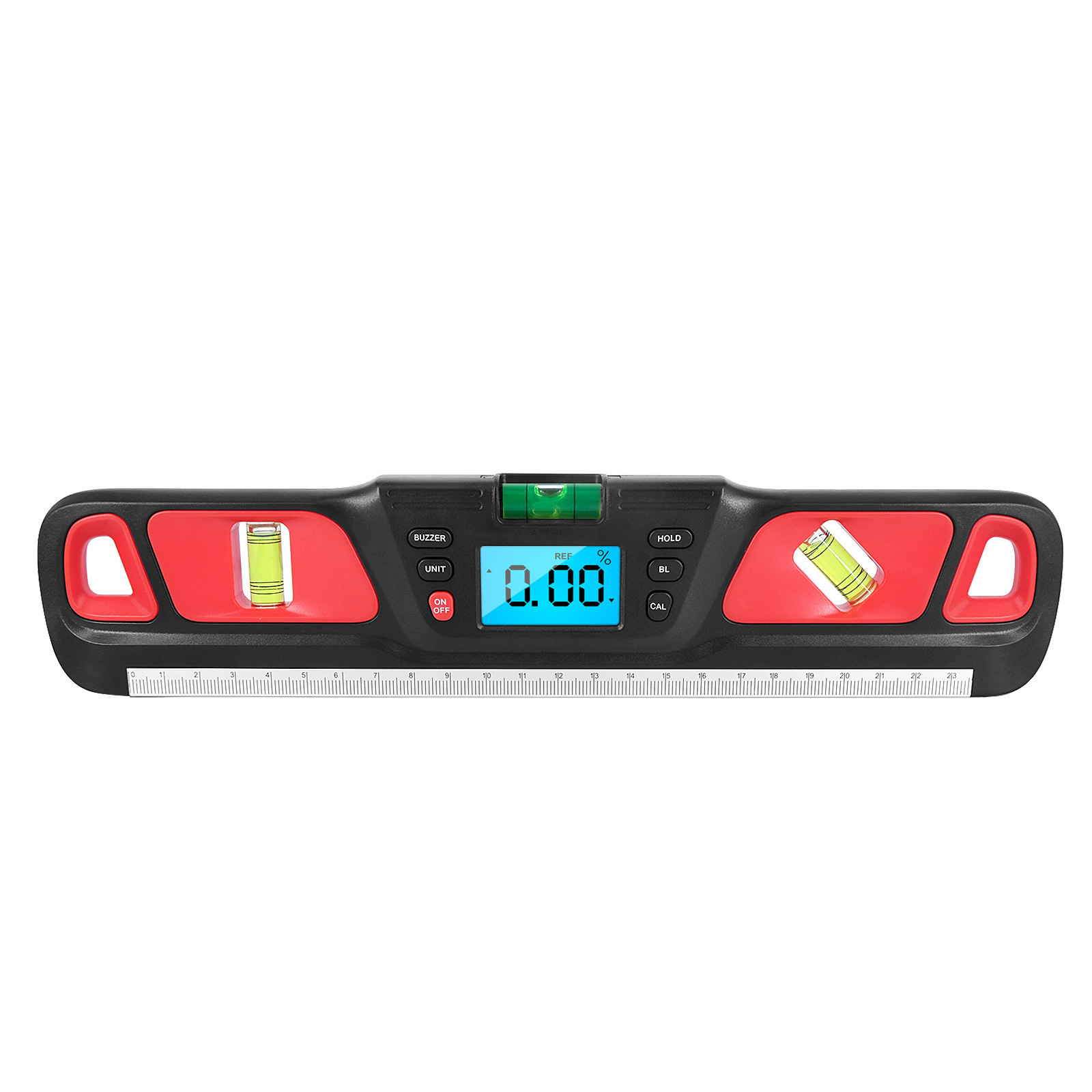

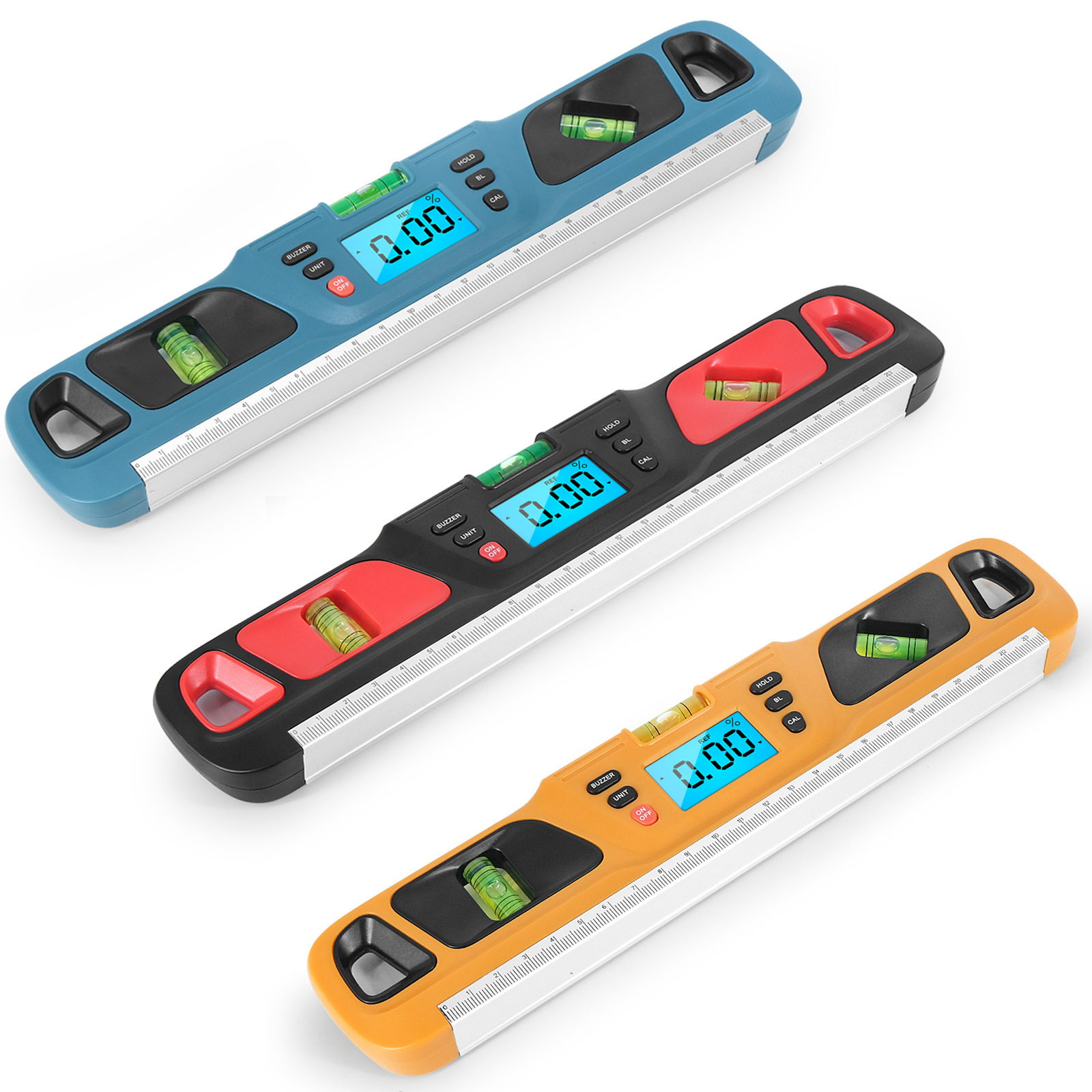

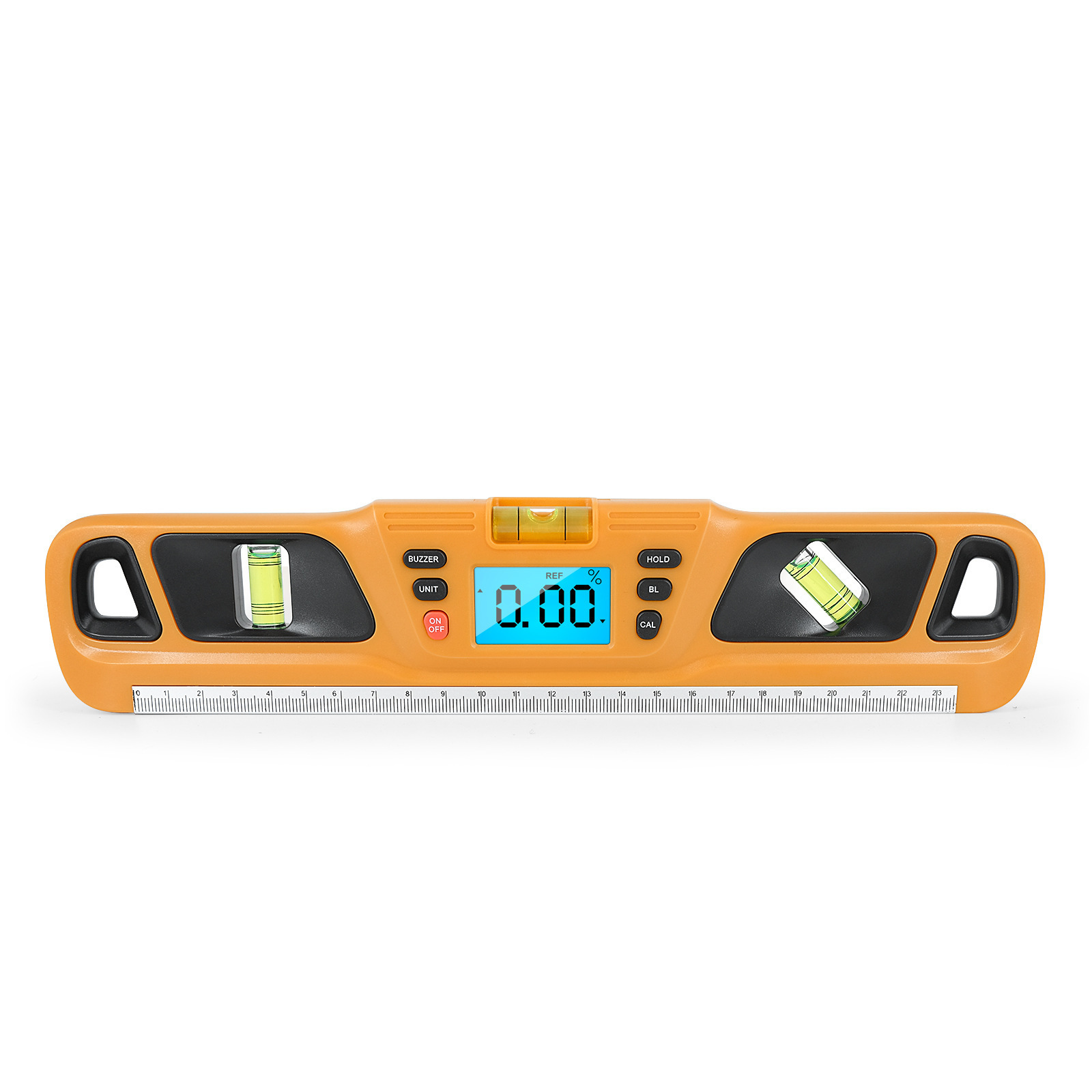

Product Image:
