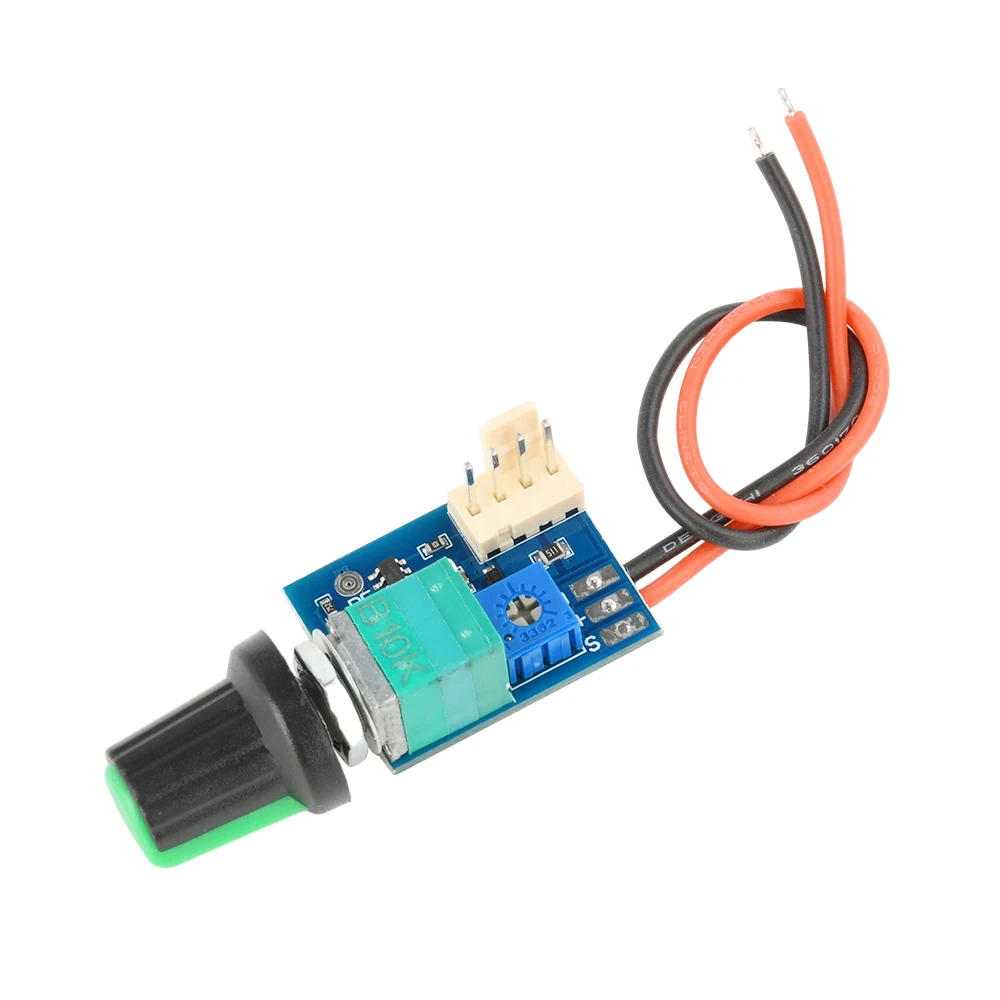

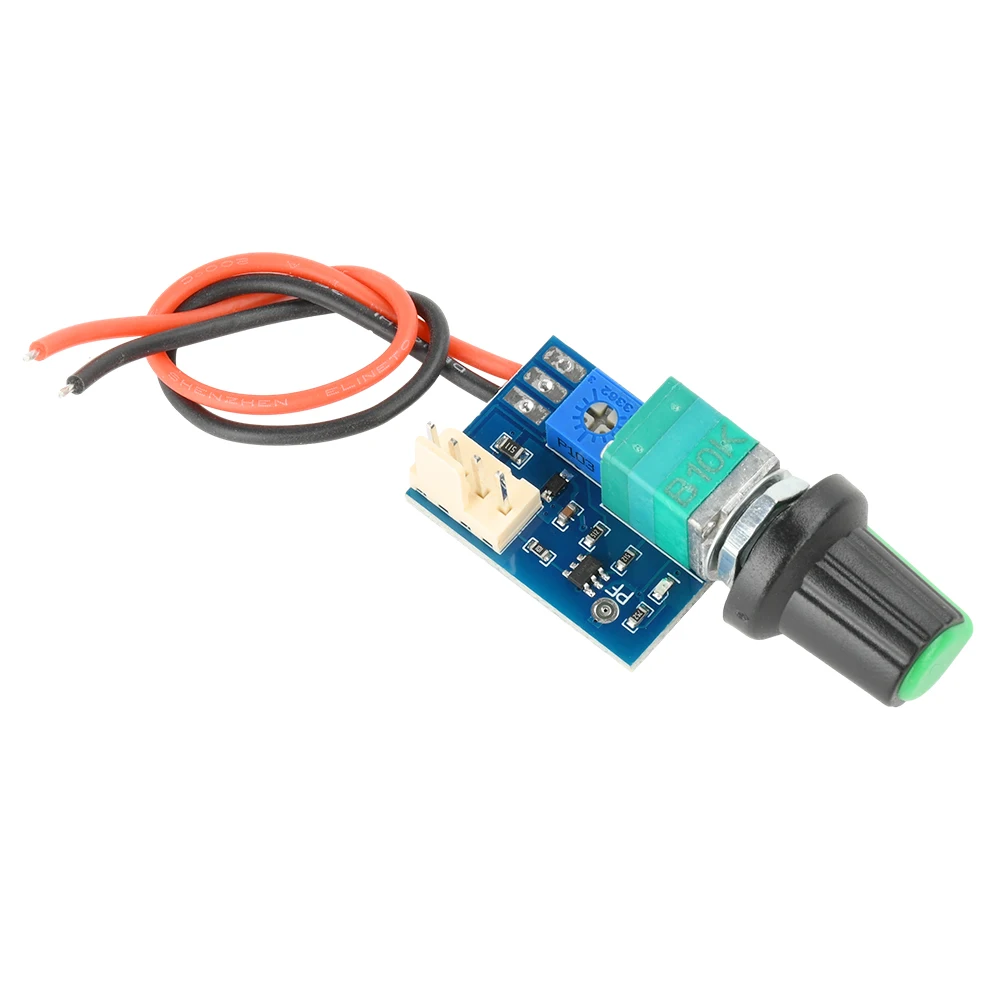

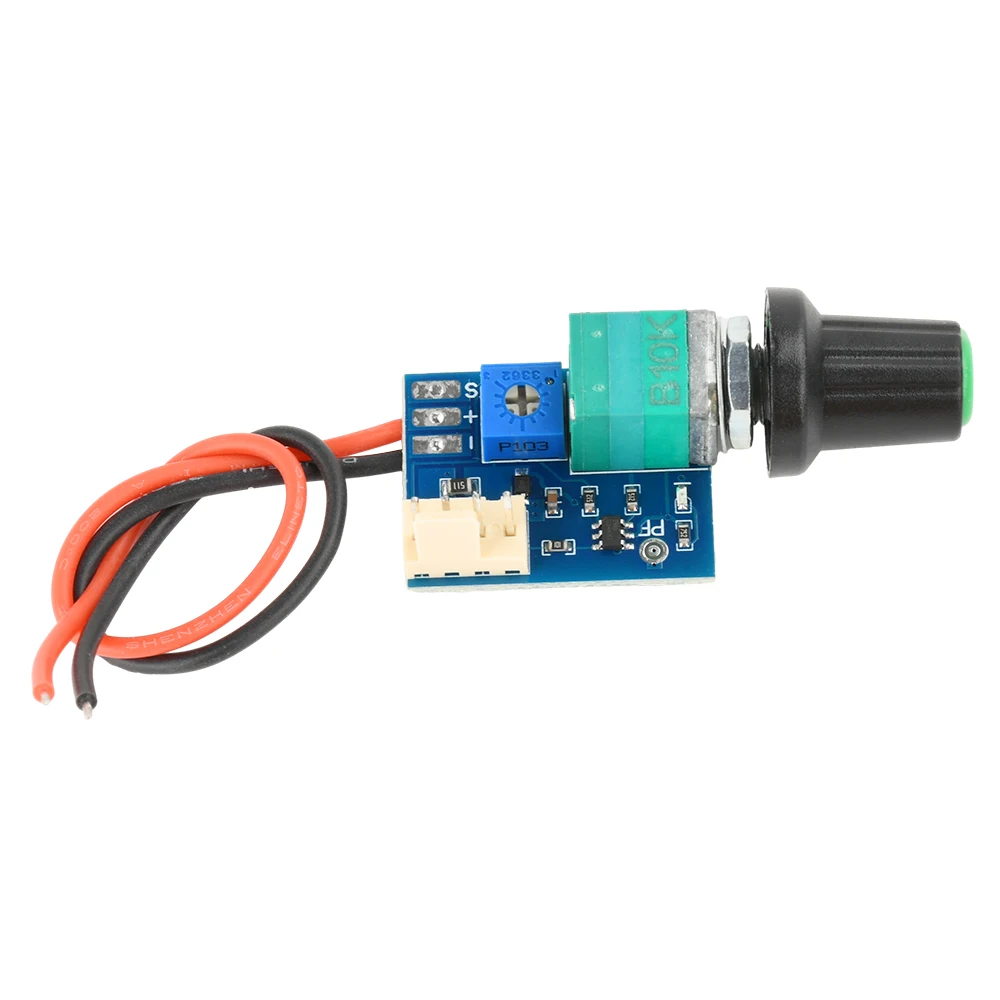

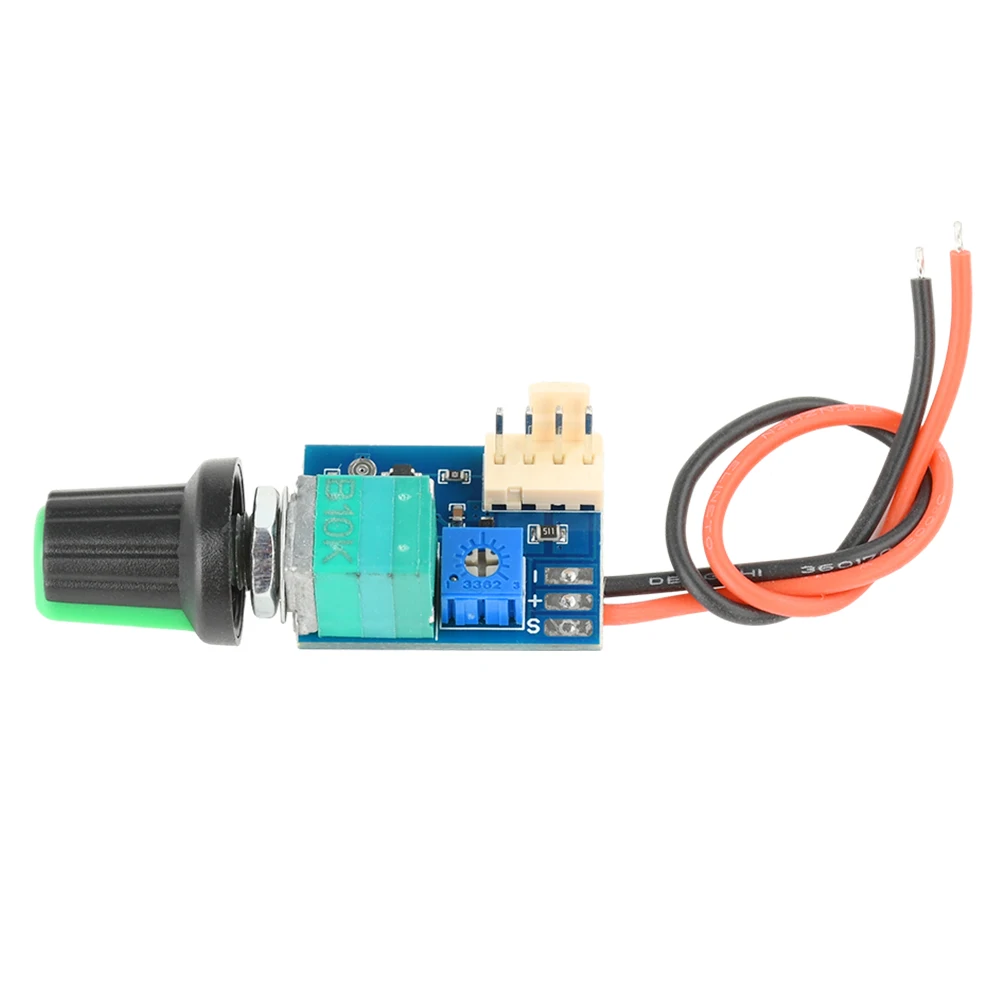

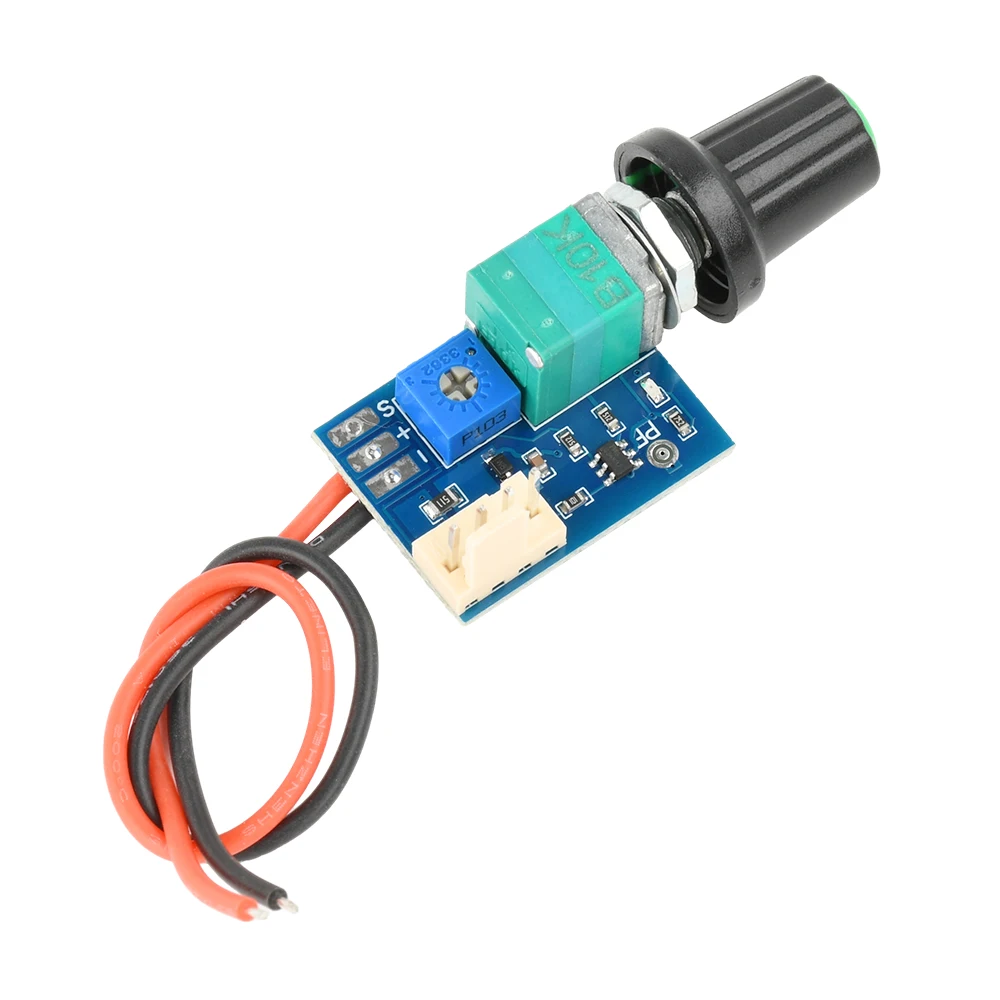

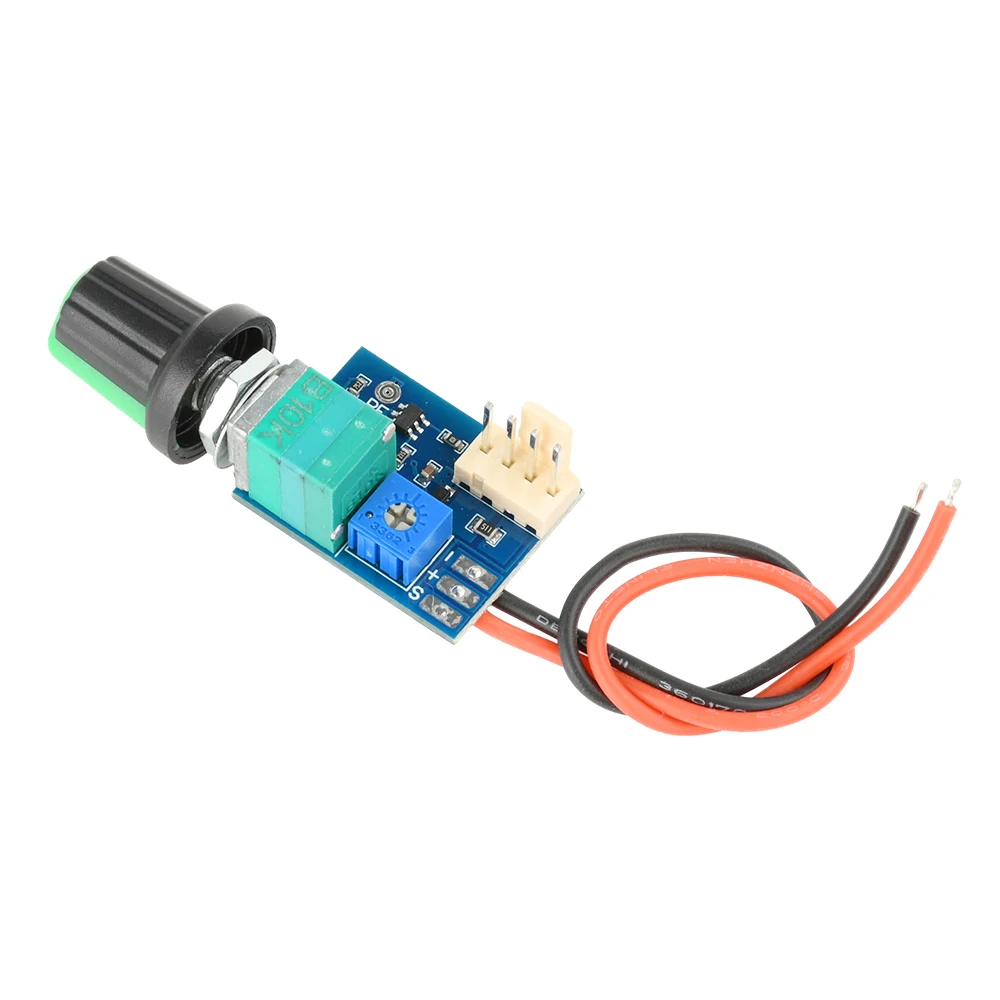

SPECIFICATIONS

Brand Name: Aideepen

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature: Adjustable Speed Regulator Control Governor Switch

Function 1: Speed Adjustable Switch Module

Function 2: PWM Speed Controller Fan Speed governor 4 Wire Computer Temperature control Switch for PC CPU Cooler Fan Manual Stop

Function 3: DC12V Manual Four-Wire PWM Fan Speed Motor Controller Board With Knob Switch Electrical Equipment Governor Module Power Supply

High-concerned chemical: none

Model Number: DC 12V 4 Wire PWM Fan Speed Motor Controller

Motor: DC Motor

Origin: Mainland China

Product Name: Mini 3A PWM 12V DC Motor Speed Controller Module

Type: Mini DC Motor PWM Speed Controller

Important Notes:

1. This is a 4-wire PWM fan speed controller, designed exclusively for controlling 12V fans that support PWM speed regulation, such as many 12V four-wire chassis or CPU fans.

2. It cannot control 2-wire or 3-wire fans !!!

Features:

1. Constructed from premium materials for assured quality

2. Equipped with a switch for power disengagement

3. Refined aesthetic design

4. Simplified wiring configuration

5. Stable operational performance

Specifications:

Operating Voltage: DC 12V (compatible with 8-15V; ensure fan voltage alignment)

Fan Current: Not exceeding 3A (current limited by switch and connectors; may be expanded via separate power cable)

PCB Self-Consumption: <20mA without fan connected

PWM Signal Mode: 5V 25kHz

PWM Output Range: 0%-100%

Initial PWM Adjustment Range: 0%-60%

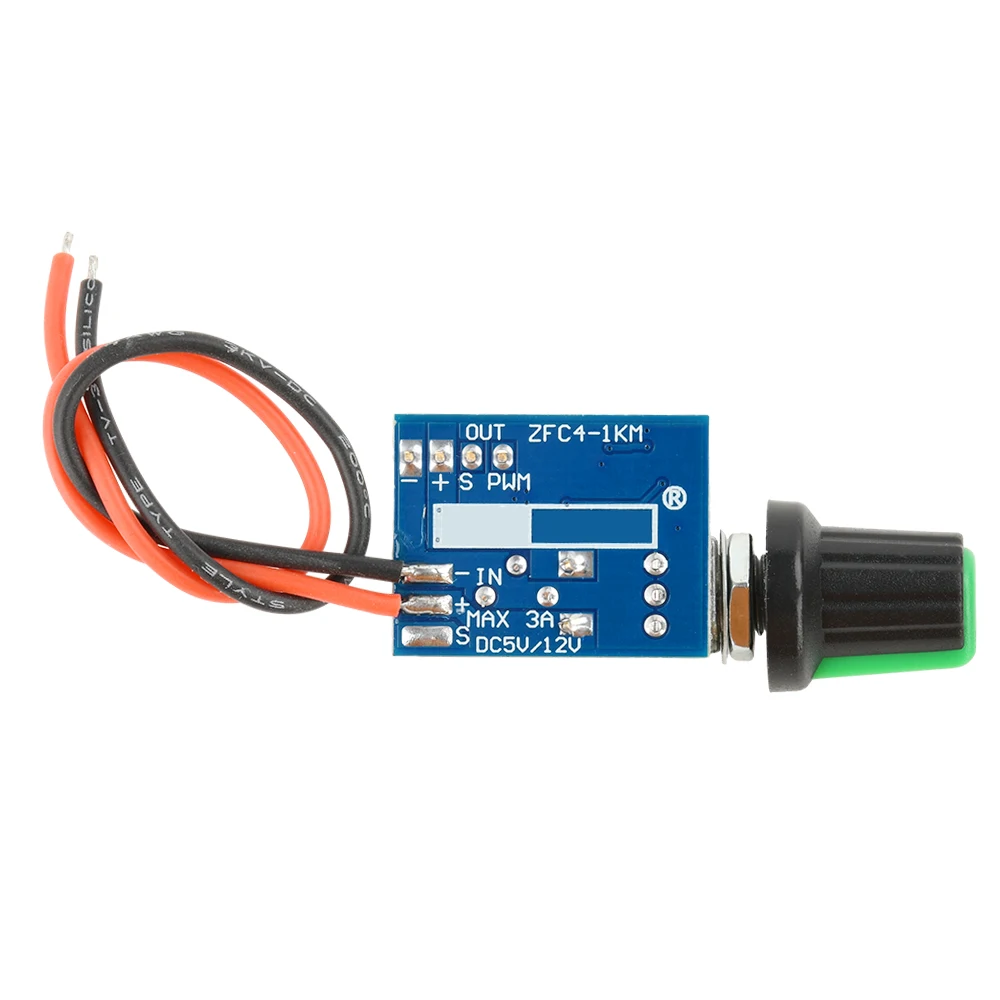

Input type: Red and black wires

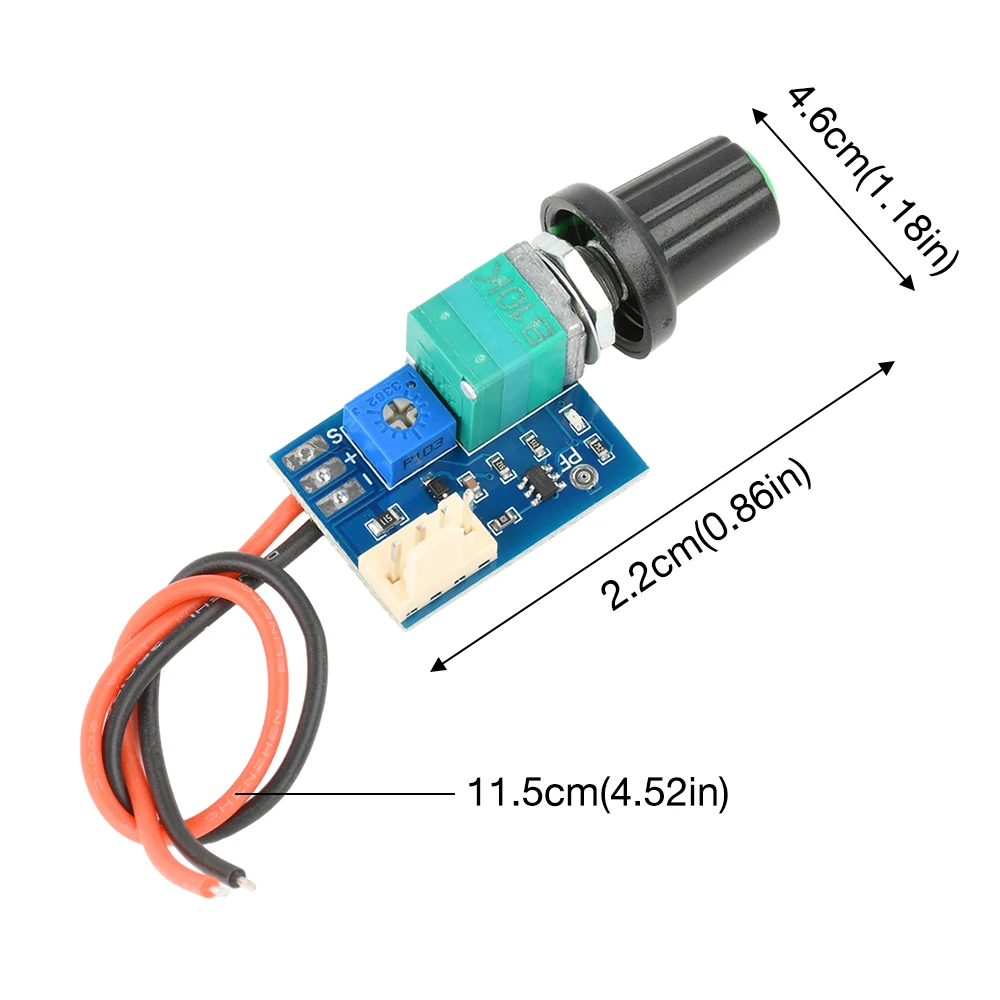

Output interface model: 2510-4P staggered pinout, standard CPU/chassis fan socket, 2.54mm pin pitch

Functional description:

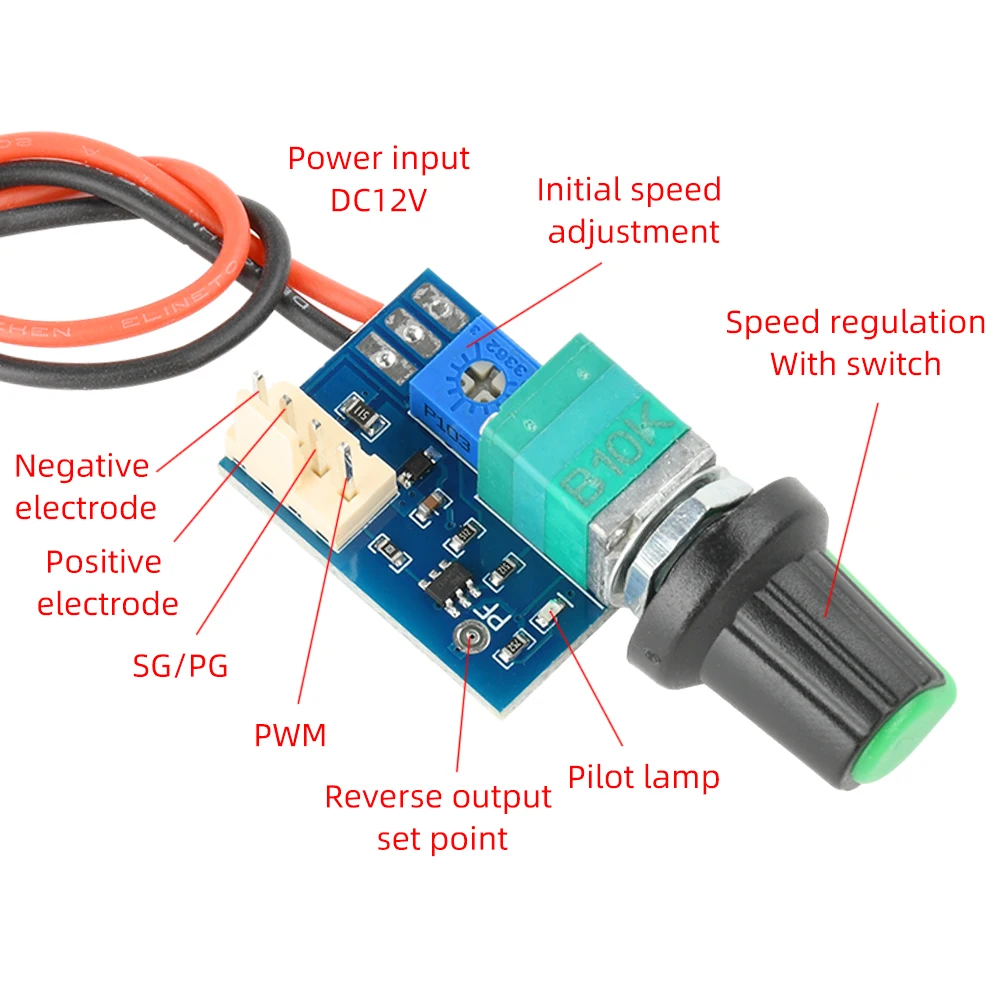

Ensure correct polarity and power supply voltage. Connect to power and fan for operation. Potentiometer fully counter-clockwise for off, fully clockwise for maximum output.

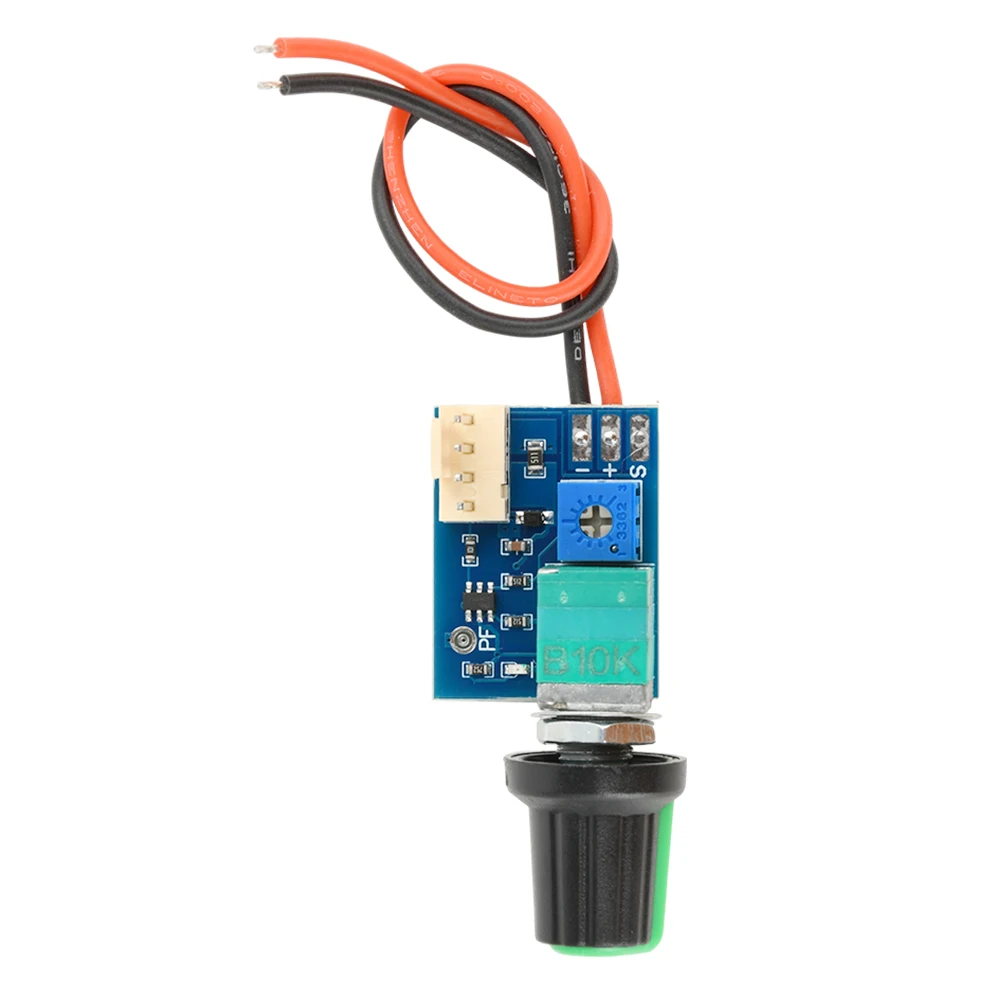

The separate small adjustable resistor on the board (for initial speed adjustment) regulates the fan's speed at startup.

Should the fan's speed change in the opposite direction to the adjustment, this indicates a reverse-sequence fan. In such cases, solder-bridge the (PF) setting point. Always disconnect power before performing this operation to prevent damage! After bridging, the PWM signal will change in the opposite direction to the adjustment, enabling forward regulation for reverse-sequence fans.

Shipping List:

PWM Motor Speed Control Module ×1
