SPECIFICATIONS
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Average charging time: 4-6H
Battery: Lithium iron phosphate 18.4ah battery
Brand Name: NONE
Certification: CE
Charge Status: No
Condition: New,New
Full load running time: Approx. 40h
High-concerned chemical: none
Machinery Test Report: Provided
Material: Cold Roller Steel
Origin: Mainland China
Path type: Single Line/Loop Line
Power: 80W *2
Running speed: 0.5-3.5km/h(Adjustable)
Standard accessories: Magnetic stripe 20 meters, 1 charger
Station docking duration: 1S-40min(Adjustable)
Stop accuracy: +-10mm
Turning radius: 1M / Right-angle Turn
Vehicle size: 760mm*530mm*210mm Table size 650mm * 530mm
Voltage: AC 220 V
Warranty: 1 Year
Weight (KG): 40
1.This is a custom-made item.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
4.please fell free contact us by email or whatsapp
email address : Lechi040@163.com
whatsapp:+8613783679687
Dear Buyer,
This product is custom-made, and the price shown is not the final price.
We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain.
The most important thing is that you need to communicate with our customer service to confirm the product parameters.
Specific pricing varies depending on the country and custom requirements, please contact customer service.
Orders not confirmed by customer service will not be shipped.

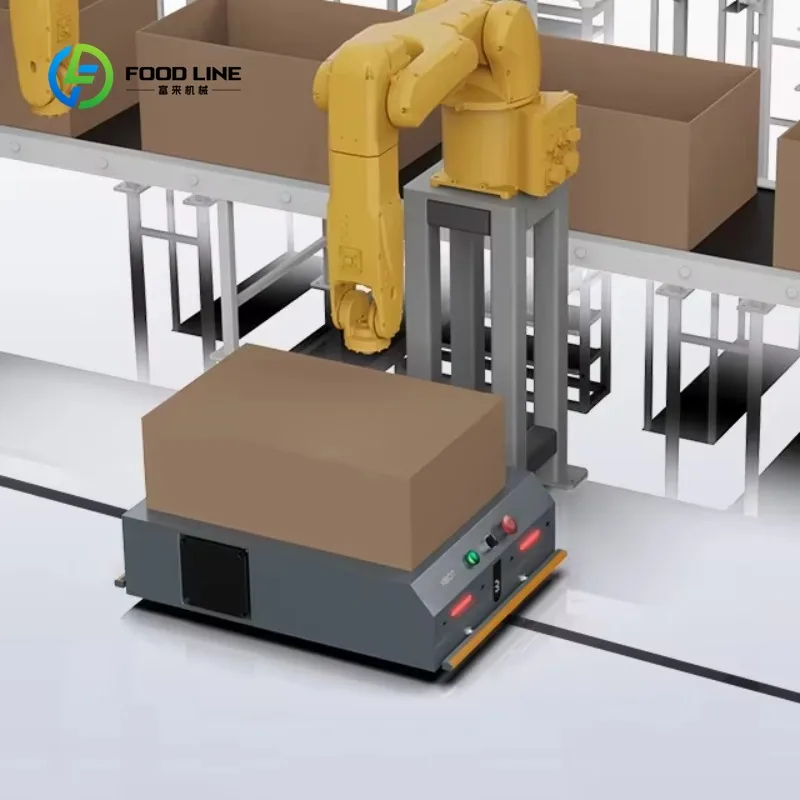

environments like electronic factories, wave soldering, and logistics. It uses brushless hub motors and dual-insurance collision
avoidance sensors for reliable operation. Key features include energy recovery, sine wave drive, and gyroscope calibration,
powered by high-safety lithium iron phosphate batteries, ensuring quiet, efficient, and long-lasting performance.
|

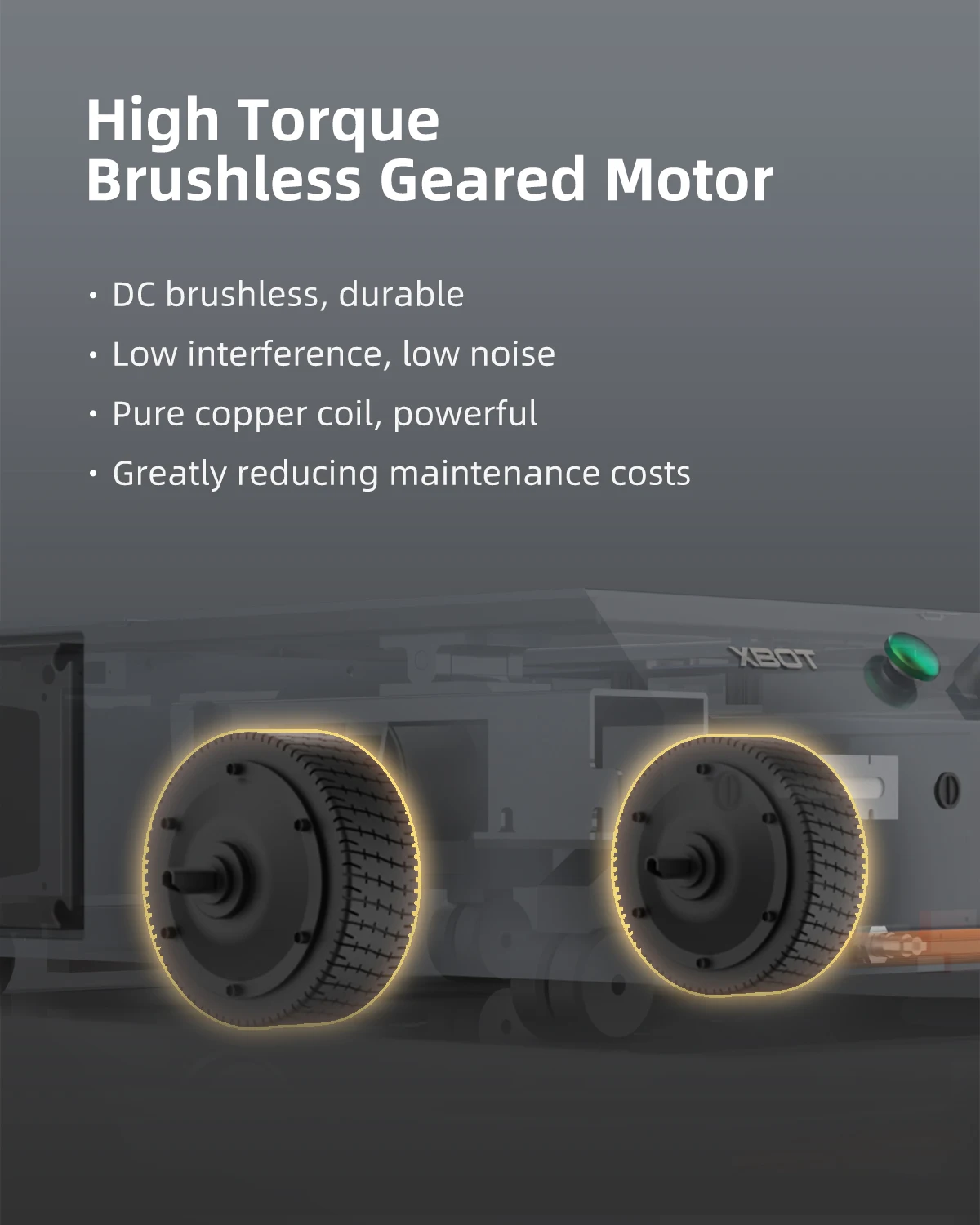

Driving method
|
High torque brushless geared motor
|
|
Path type
|
Single Path; Loop Path; Branch Path(optional)
|
|

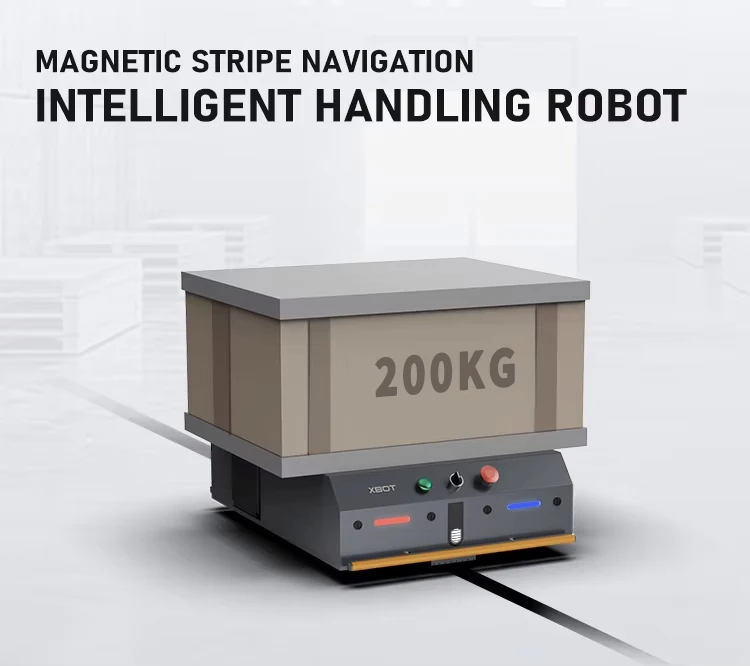

Maximum Load
|
200kg
|
|

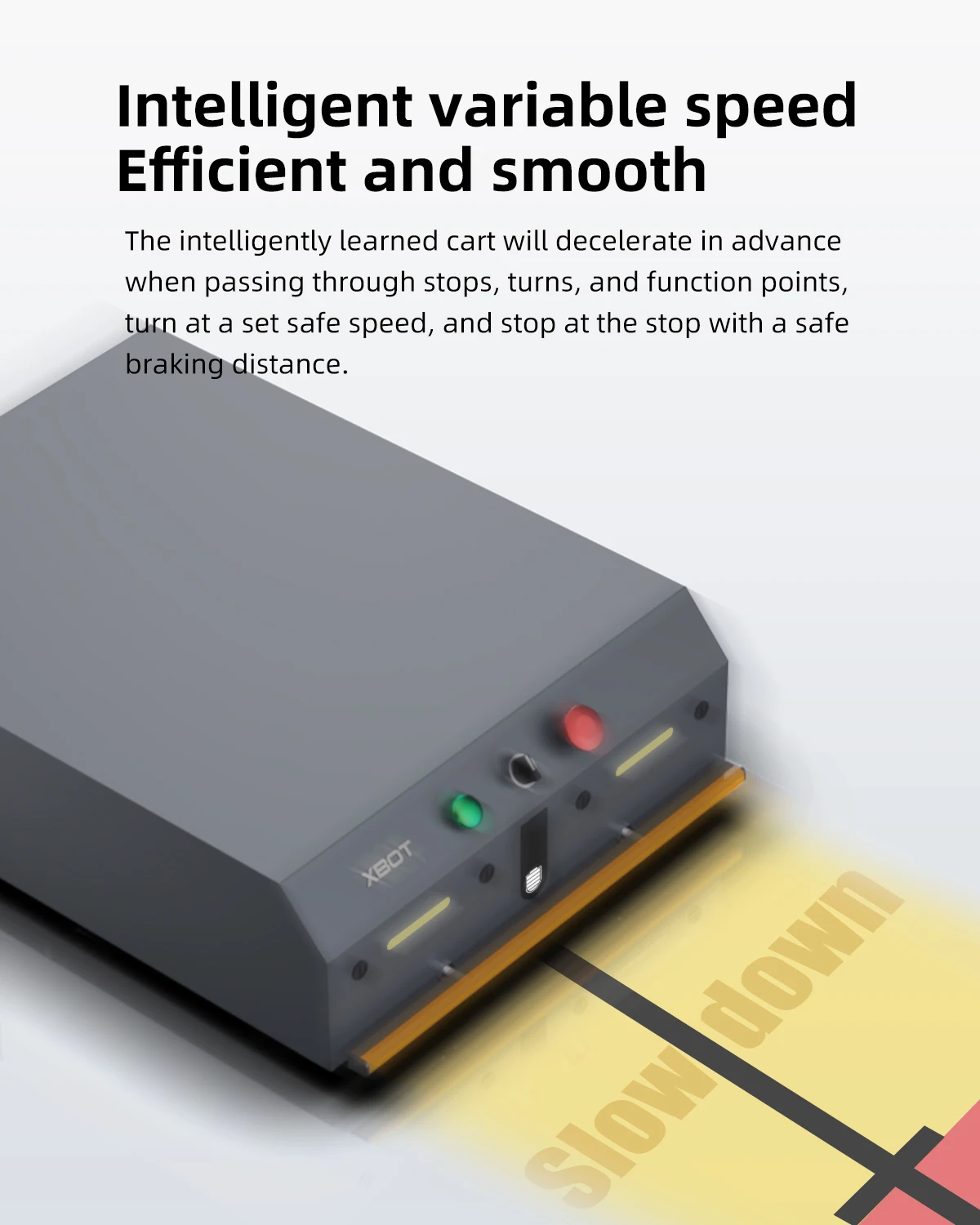

Running speed
|
0.5-3.5km/h (adjustable within mobile app)
|
|
Station stop duration
|
1s-40 min (adjustable within mobile app)
|
|
Stopping accuracy
|
±10mm
|
|

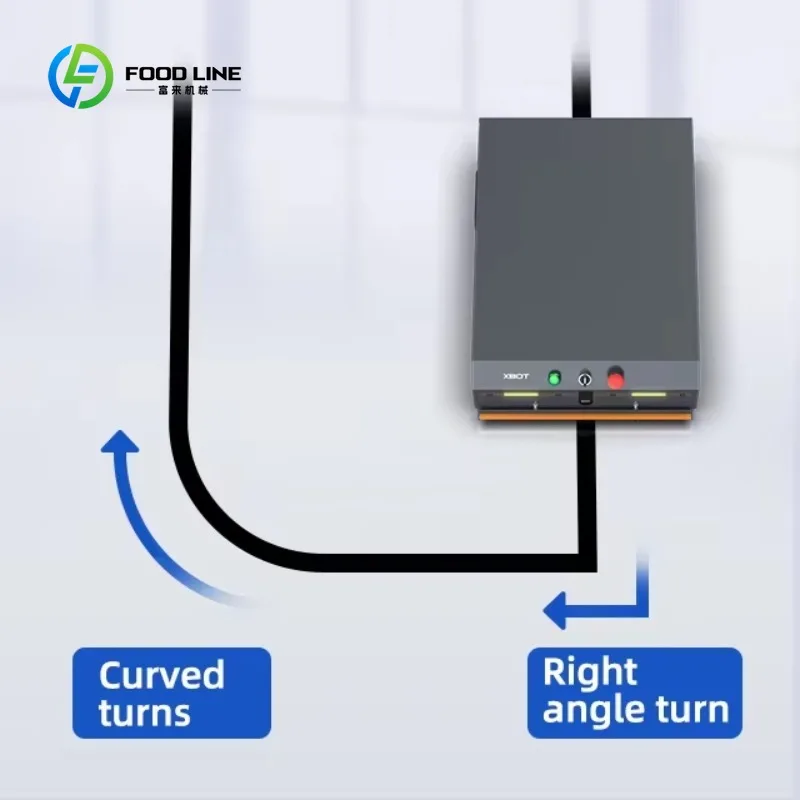

Minimum Turning Radius
|
1M，90-degree Turn
|
|
Battery capacity
|
Lithium iron phosphate battery 18.4Ah
|
|
No-load running time
|
100 hours
|
|
Full load run time
|
Approx.40 hours
|
|
Average charging time
|
4-6 hours
|
|

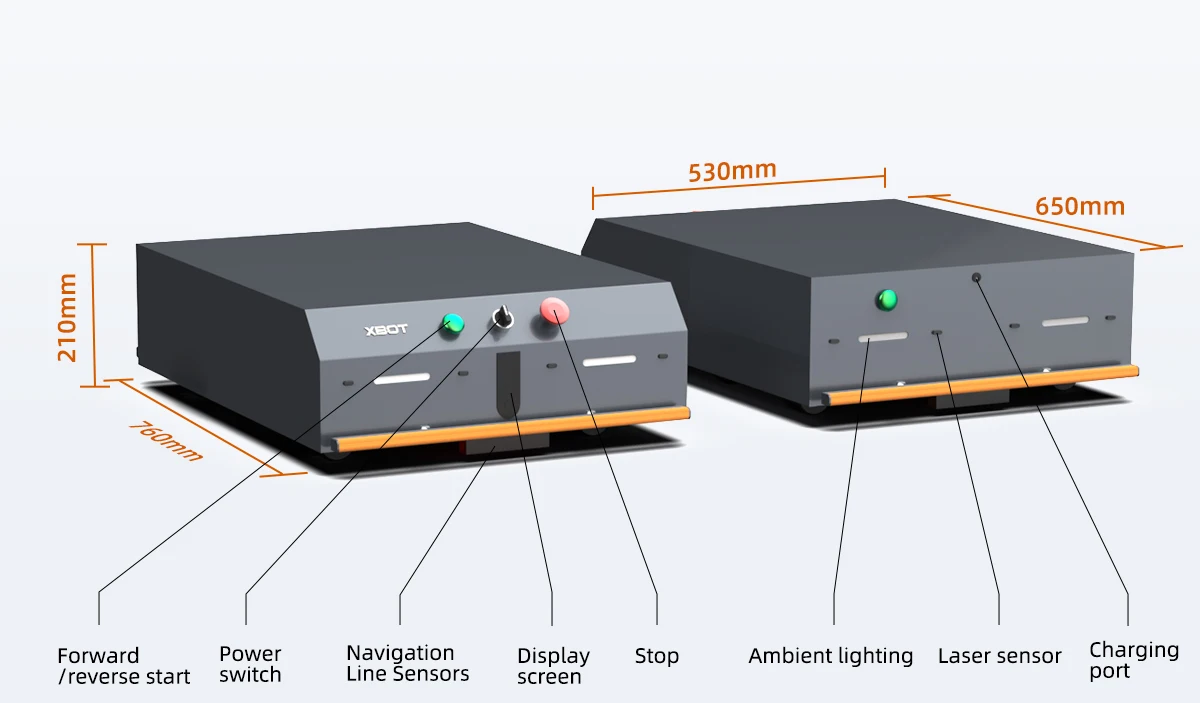

Vehicle size
|
760mm*530mm*210mm
Table Size: 650mm*530mm
|
|
Vehicle Weight
|
Approx.40KG (including battery)
|
|

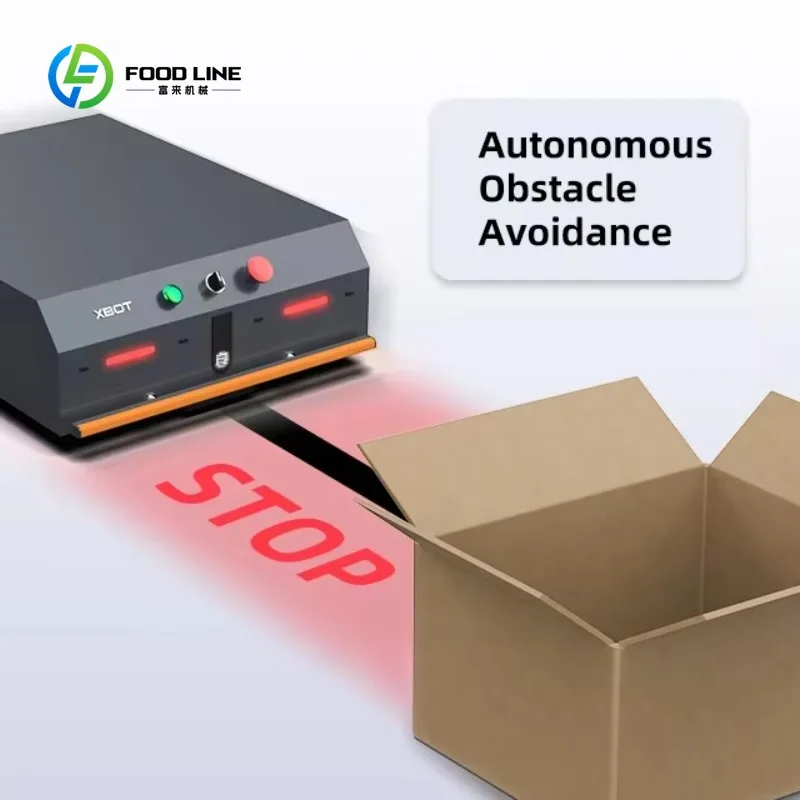

Obstacle Detection
|
Laser sensors (4 front, 4 rear)
Collision-stopping structure |
|

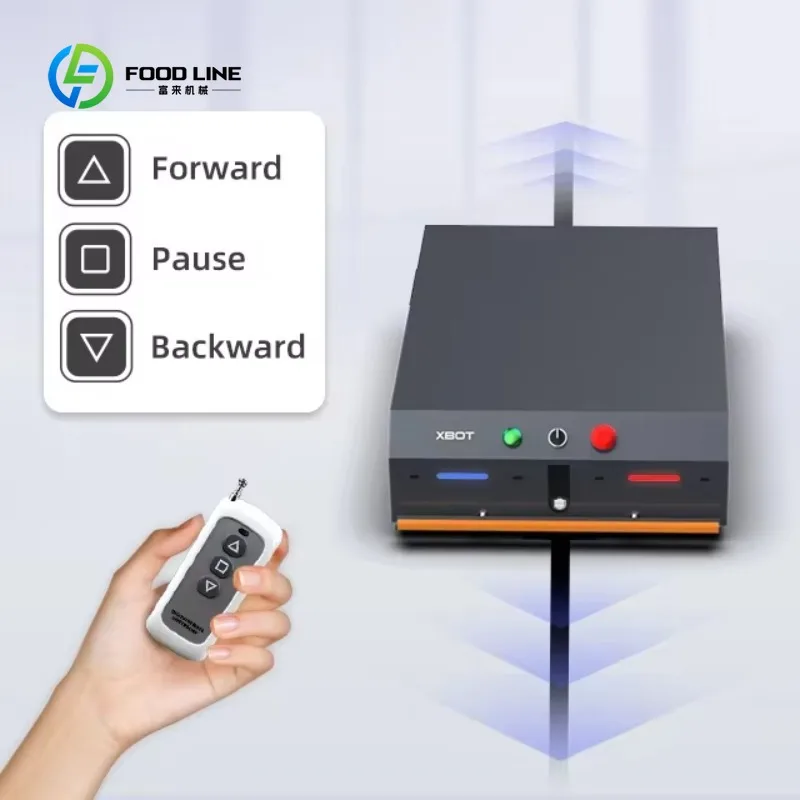

Return mode
|

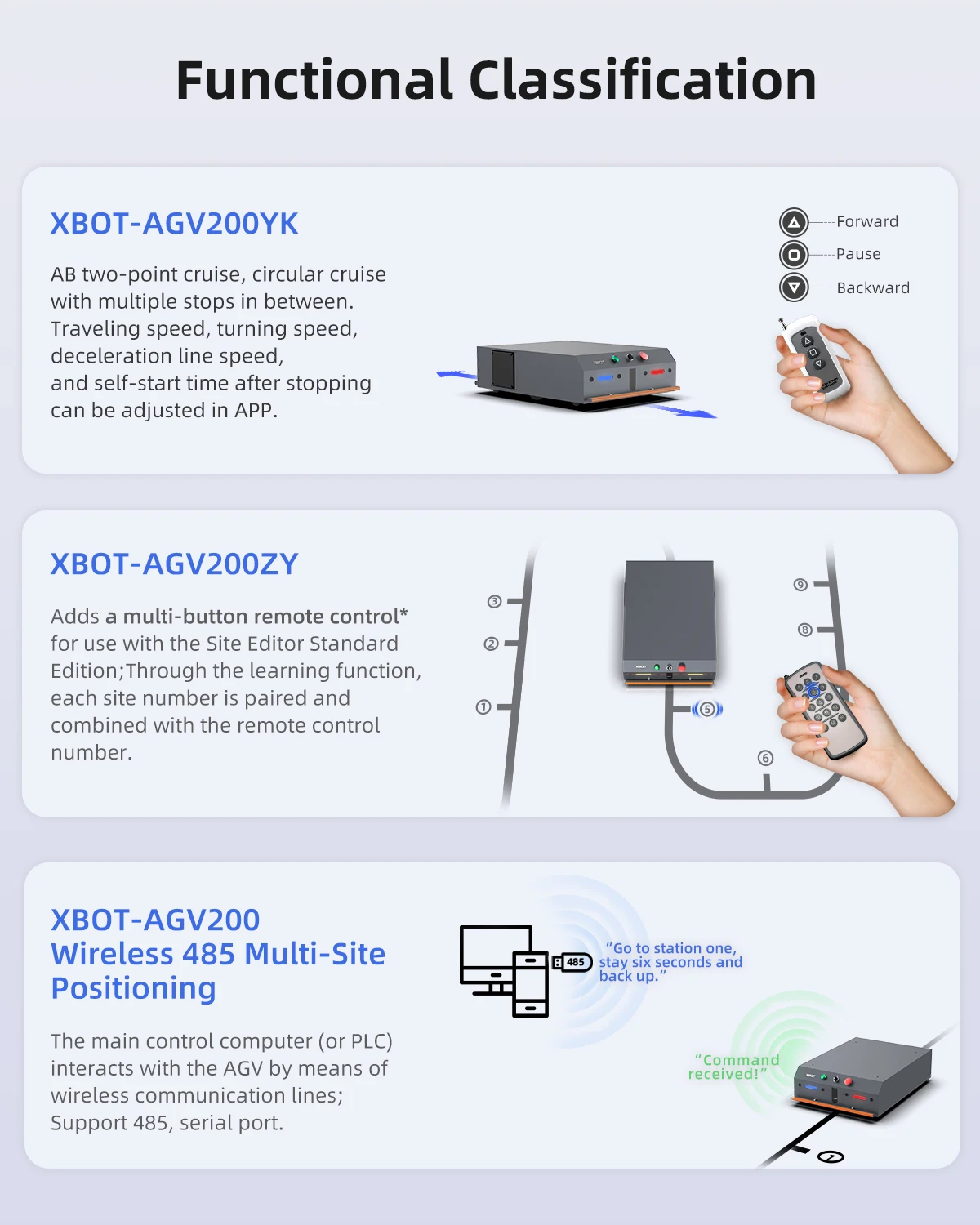

Auto/manual, manual bi-directional start:
forward run, reverse run (app setting) |
|
Charging method
|
Direct charging/external charging
/wireless charging (optional) |
|
Charging Voltage
|
AC220V–CD25.2V5A
|
|

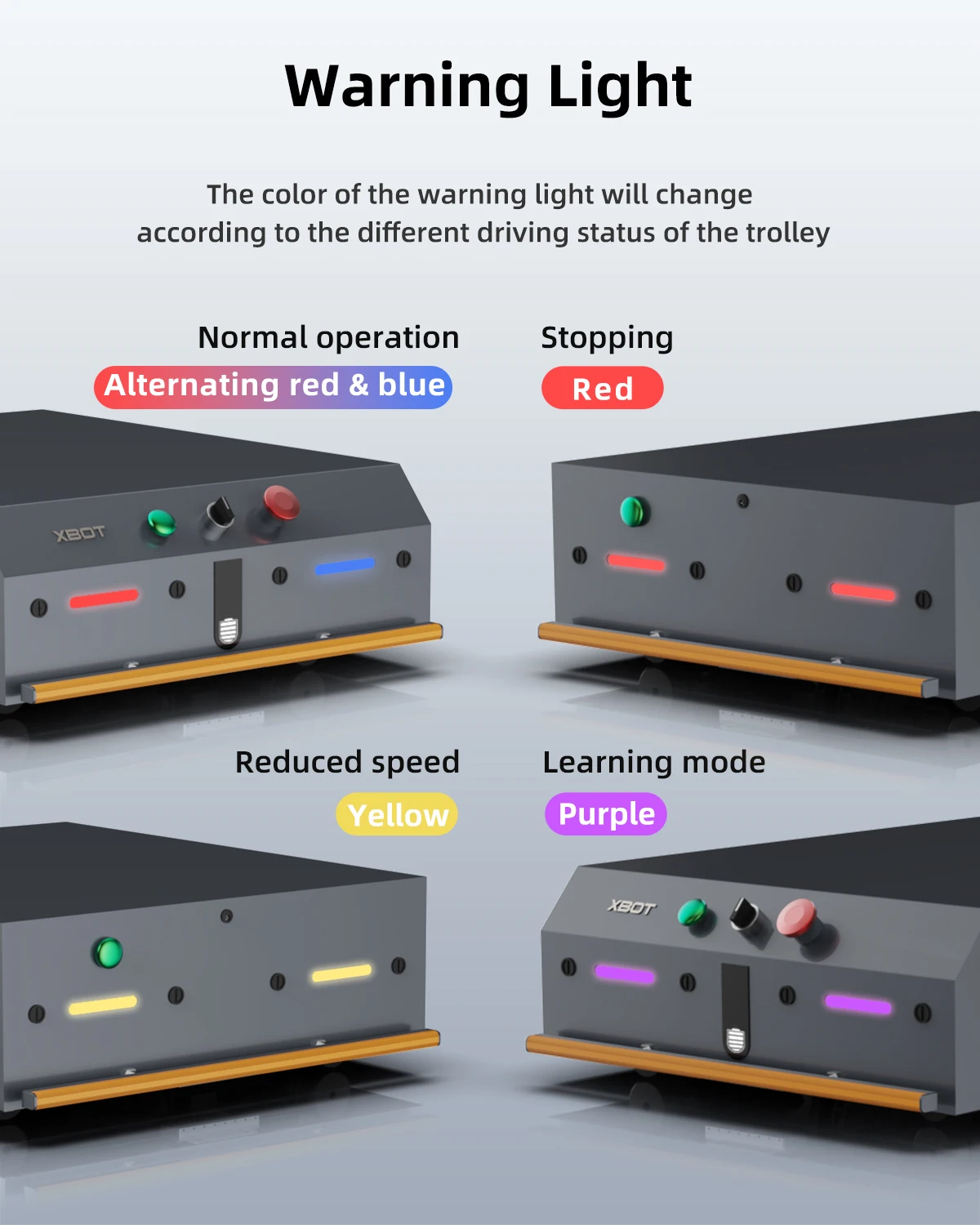

Warning light
|
Have (can be turned on/off)
|
|
Beep
|
Arrival tone, obstacle avoidance tone
|
|
Standard Accessories
|
Magnetic stripe 20 meters, 1 charger
|
|

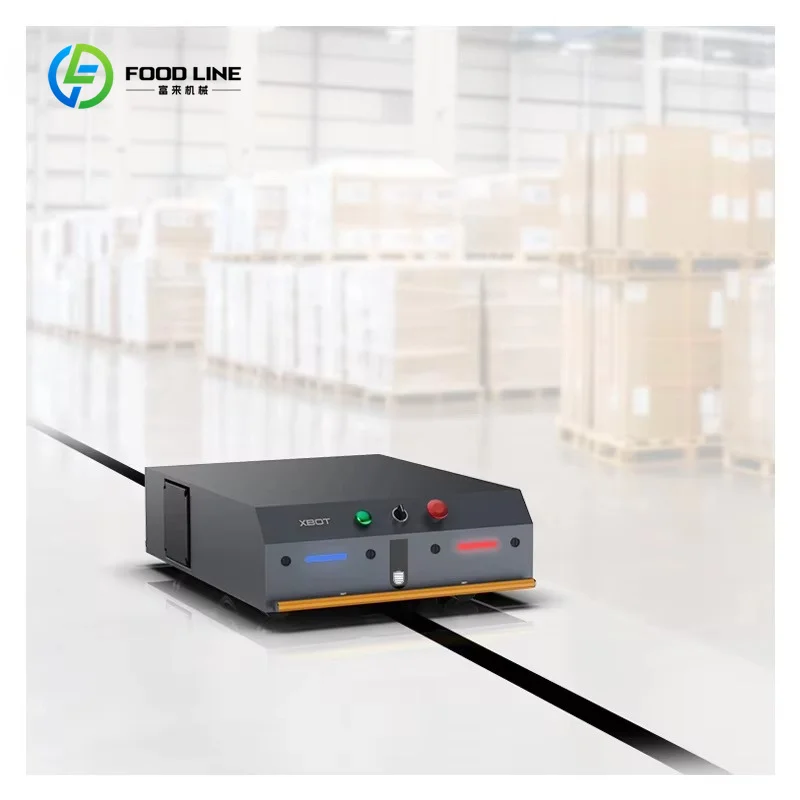

Stripe parameter
|
Smooth N pole, Back glue S pole;thickness1.2mm*wide30mm 50m weight;6.6KG
|
