SPECIFICATIONS
Application: Industrial / Commercial
Battery: Lifepo4 Lithium Battery
Battery Type: Lithium Ion, Lead-acid
Brand Name: NONE
Certification: CE,CE/TUV/ISO/INMETRO/BIS/CEC/MCS
Charge Status: No
Condition: New
Controller Type: MPPT
Free installation service: Yes
High-concerned chemical: none
Inverter type: Hybrid Grid Solar Inverter
Load Power (W): 20 kW, 30 kW, 50 kW, 25kw, 60kw, 80kw, 100kw, 150kw, 125kw, 250kw, 120kw
Model Number: Customizable
Mounting Structure: Ground Mounting / BIPV Mounting
Mounting Type: Ground Mounting / BIPV Mounting
Origin: Mainland China
Output Frequency: 50HZ/ 60HZ
Output Voltage (V): EU:220/240/380/400V US:110/120/220/240(Adjustable)
Package: Wooden Box
Pre-sales project design: Y
Solar Panel Type: Polycrystalline Silicon, Monocrystalline Silicon

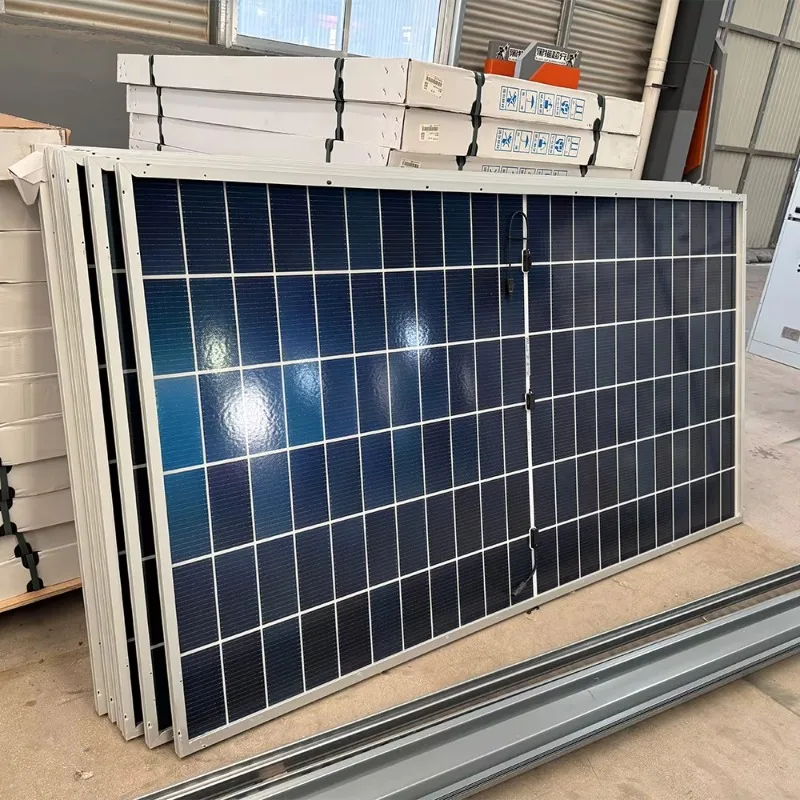

Solar panel: 730w Bifacial Solar Panel or customized
System Power: 20KW/25KW/30KW/50KW/60KW/80KW/100KW/150KW/125KW/250KW
System Type: On-Grid Solar System
Technical Support: Yes
Warranty: 25 Years
Work Time (h): 24 Hours
1.This product is custom-made. Please contact us if you have any other requirements.
2.We will provide you with a final price after understanding your specific needs.
3.Due to variations in product size and shipping costs, all products on our website do not include shipping fees.
4.The final cost will be calculated based on your requirements and shipping costs.
5.Please confirm with us before placing your order.
email address : mike052025@163.com
whatsapp:+86：13598012171
🔥 WHOLESALE INQUIRIES WELCOME
Bulk Purchase Exclusive Offers – Customize Your Deal!
We offer special wholesale pricing and tailored benefits for bulk orders to support your rental business, event planning, or large-scale commercial needs.
Whether you’re ordering multiple units or planning a mixed-container shipment, our sales team will work with you to create a custom discount package that fits your budget and requirements.
Contact us now to discuss your order volume and get a personalized, competitive quote!
|
Battery Model
|
50kWh-30kW-HX1
|
100kWh+55kW-HX1
|
215kWh+100kW-HX1
|
241kWh+125kW-HX1
|
|
Battery Energy
|
50kWh
|
100kWh
|
215kWh
|
241kWh
|
|
PCS
|
30kW
|
55kW
|
100kW
|
125kW
|
|
MPPT Power
|
38kW(2 Channels)
|
75kW(2 Channels)
|
120kW(1 or 4 Channels)
|
120kW(1 or 4 Channels)
|
|
MPPT Voltage Range
|
200~800Vdc
|
200~800Vdc
|
250~850Vdc
|
250~850Vdc
|
|
AC Voltage
|
400Vac/230Vac
|
400Vac/230Vac
|
400Vac/230Vac
|
400Vac/230Vac
|
|
IP Grade
|
IP54
|
IP54
|
IP54
|
IP54
|
|
Parallel
|
3
|
3
|
10
|
10
|
|
Generator
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Size (mm)
|
760*920*1950mm
|
740*1170*2060mm
|
1190*1170*2260mm
|
1190*1170*2260mm
|
|
Weight (kg)
|
750kg(about)
|
1200kg(about)
|
2500kg(about)
|
2520kg(about)
|
|
Battery Model
|
480kWh+200kW
|
520kWh+250kW
|
520kWh+375kW
|
|
Battery Energy
|
480kWh
|
520kWh
|
520kWh
|
|
PCS
|
200kW
|
250kW
|
375kW
|
|
MPPT Power
|
240kW(2 Channels)
|
240kW(2 Channels)
|
480kW(4 Channels)
|
|
MPPT Voltage Range
|
250~850Vdc
|
250~850Vdc
|
250~850Vdc
|
|
Rated AC Current
|
300A
|
370A
|
560A
|
|
AC Voltage
|
400Vac/230Vac
|
400Vac/230Vac
|
400Vac/230Vac
|
|
IP Grade
|
IP54
|
IP54
|
IP54
|
|
Generator
|
Yes
|
Yes
|
Yes
|
|
Size (mm)
|
2500*2200*2400mm
|
2500*2200*2400mm
|
2500*2250*2400mm
|
|
Weight (kg)
|
5250kg(about)
|
5500kg(about)
|
5560kg(about)
|
|
Battery Model
|
645kWh+300kW
|
780kWh+375kW
|
1MWh+500kW
|
|
Battery Energy
|
645kWh
|
780kWh
|
1MWh
|
|
PCS
|
300kW
|
375kW
|
500kW
|
|
Rated AC Current
|
454A
|
560A
|
757A
|
|
Rated Grid Voltage
|
400Vac/230Vac
|
400Vac/230Vac
|
400Vac/230Vac
|
|
MPPT Power
|
360kW(3 Channels)
|
360kW(3 Channels)
|
Solar Inverter Outside
|
|
MPPT Voltage Range
|
250~850Vdc
|
250~850Vdc
|
/
|
|
IP Grade
|
IP54
|
IP54
|
IP54
|
|
Generator
|
Yes
|
Yes
|
Yes
|
|
Size (mm)
|
2991*2438*2591mm
|
2991*2438*2591mm
|
2991*2438*2591mm
|
|
Weight (kg)
|
8000kg(about)
|
8700kg(about)
|
10600kg(about)
|
FAQ
Where is your company located? When was it established? What is the scale?
Our company is based in Henan, China, and was established in 2016. Currently, we have between 199 and 399 employees in our office.
What are your main markets?
1. South America (30.00%) * Central America (13.00%)* Mid East (11.00%)* South Asia (8.00%)* Southeast Asia (6.00%)
2.Western Europe (6.00%)* North America (5.00%)* Oceania (5.00%)* Eastern Europe (4.00%)* Northern Europe (4.00%)
3.Domestic Market (3.00%)* Africa (2.00%)* Southern Europe (2.00%)
How do you ensure product quality?
We strictly control quality through two key steps:
1. Always providing a pre-production sample for confirmation before mass production.
2. Always conducting a final inspection before shipment.
What transaction services do you offer?
1. Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, FCA, CPT, DEQ, Express Delivery
2. Accepted Payment Currencies: USD, EUR, HKD, CNY.
3.Accepted Payment Methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow.
Dear Buyer,
This product is custom-made, and the price shown is not the final price. We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.
Due to the different product sizes and shipping costs in each country,all products on our website do not include shipping costs.The final shipping cost needs to be calculated based on the actual cost, please confirm with us before placing an order.
email address : mike052025@163.com
whatsapp:+86：13598012171
