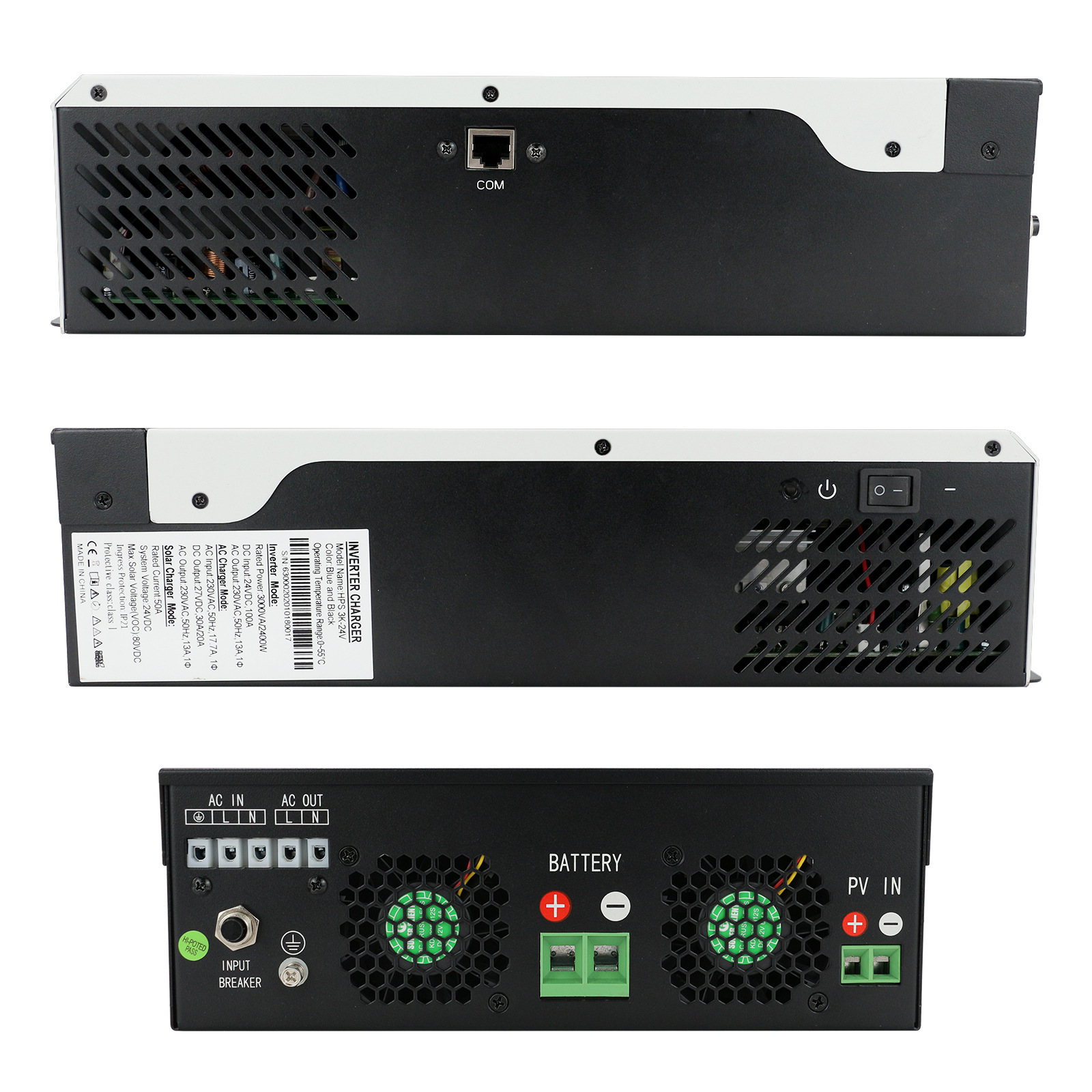

3KVA 24V High Frequency Off Grid Charging Inverter

Specification:
High frequency inverter control machine (sine wave) hps-3k-24v
Power: 3000va/2400w output voltage: 220vac/50/60hz
Battery voltage: 24vdc
Charging current: 20a/30a pwm controller 50a
Mains mode priority/solar mode priority adjustable
Rate power: 2400w
Voltage: 230vac
Frequency range: 50hz/60hz(auto sensing)
Ac voltage regulation (batt. Mode): 230vac+5%
Output voltage waveform: Pure sine wave
Transfer time: 10ms typical(ups); 20ms typical(appliances)
Battery voltage: 24vdc
Floating charge voltage: 27vdc
Overcharge protection: 31vdc
Maximum ac charge current: 20/30a
Maximum pv array power: 1 200w
Operating voltage range:30~80vdc
Maximum pv array open circuit voltage: 80vdc
Maximum charging current: Pwm 50a

Packing list:

Device X1
Software CDx1
User manual xl
Communication cable x1
